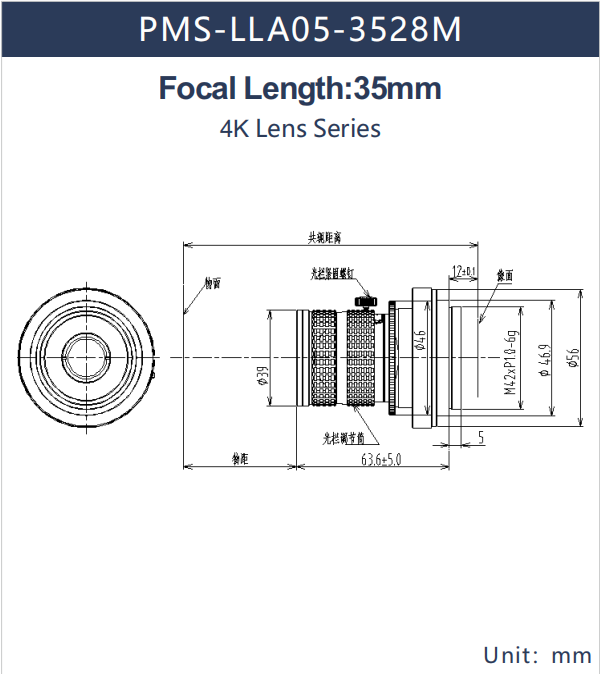

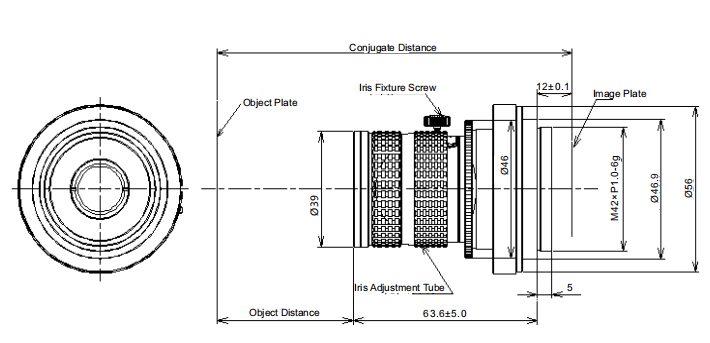

POMEAS 4K line-scan lens PMS-LLA05-3528M

PMS-LLA05-3528M

POMEAS 4K line-scan lens supports up to φ32mm image, ultra-low distortion, anti-vibration design, and reference magnification covering 0.015~0.05X.

4K-line-scanlens PMS-LLA05-3528M

Product Introduction:

POMEAS 4K line-scan lens supports up to φ32mm image, ultra-low distortion, anti-vibration design, and standard magnification range 0.3~0.7X.

Product Advantage:

1. High-resolution optical design with target surface size of ∅32 mm

2. Compatible with 7 μm line array cameras;

3. High uniformity, low distortion, high resolution;

4. Suitable for machine vision industry and automation industry.

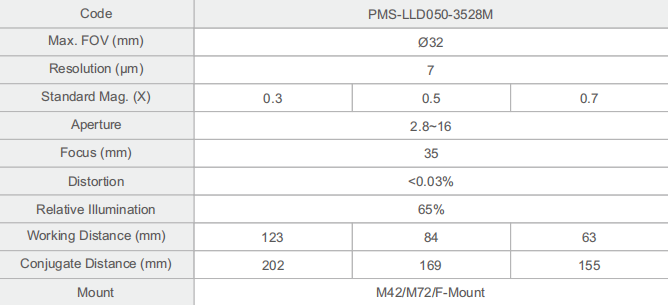

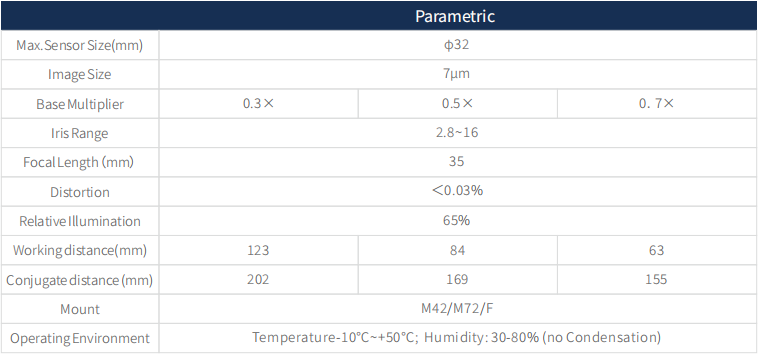

Parameter List:
