PMS-IC05

Video Microscope Unit support Max.2/3" camera, C-mount; 1X magnification, do not change APO magnification.

Optics General Catalog

  • Download now





    Product Introduction

    ——



    Can work with measurement camera, APO lens,with clear image;coaxial illumination, offer high contrast; support Max. 2/3" camera, C-mount; 1X magnification, do not change APO magnification

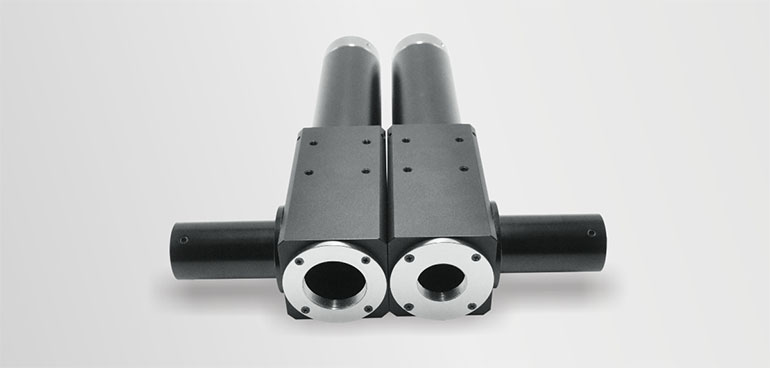

    Video Microscope Unit

    ——



    1, Can work measurement camera, APO lens, with clear image

    2, Coaxial illumination, offer high contrast

    3, Support Max. 2/3" camera, C-mount

    4, 1X magnification, do not change APO magnification.







    Application Field

    ——



    Biology, medical, research field













    Video Microscope Module Parameter Table
    ——



    Code Item Magnifition

    W.D

    (mm)

    Focal Length

         (mm)

    Resolution

        (um)

    Field Of VIEW
    1/3" 1/2" 2/3"
    PMS-IC02    #660-202         2X 34.6

    90.91

    6.10

    2.00*2.67  2.67*3.56  3.67*4.89
    PMS-IC05

    #660-205

    5X 45.0 14.29 2.40 0.80*1.07 1.07*1.42 1.47*1.96
    PMS-IC10 #660-210 10X 34.0 3.57 1.20 0.40*0.53 0.53*0.71

    0.73*0.98

    PMS-IC20

    #660-220

    20X 30.8 1.72 1.16 0.20*0.27 0.27*0.36 0.37*0.46
    PMS-IC50 #660-250 50X 20.5 1.48 0.80 0.08*0.11 0.11*0.14

    0.15*0.20
