Parallel Light

POMEAS Parallel Light Series:Work with telecentric lens, support 35~265mm diameter parallel light.

Optics General Catalog

Download now

Product Introduction
——

POMEAS Parallel Light Series:Work with telecentric lens, support 35~265mm diameter parallel light.

Product Advantage
——

• Telecentric parallel LED light source is designed for backlight lighting.
• Improved the edge contour contrast of the detected product in the detection system eliminates boundary effects.
• Maximize the natural depth of field and telecentricity of telecentric lens.

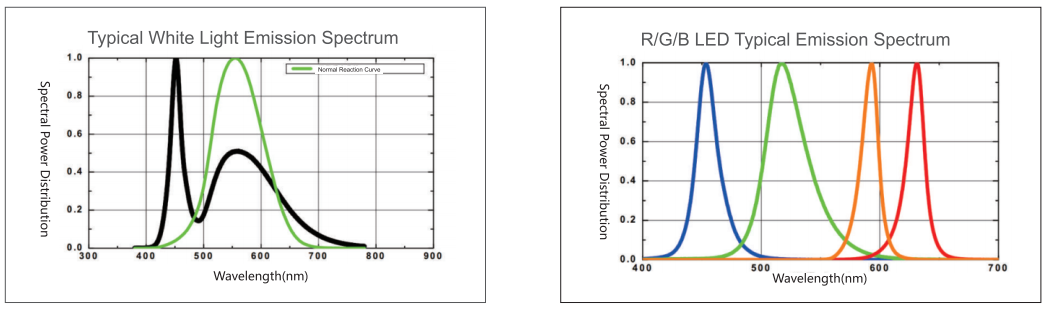

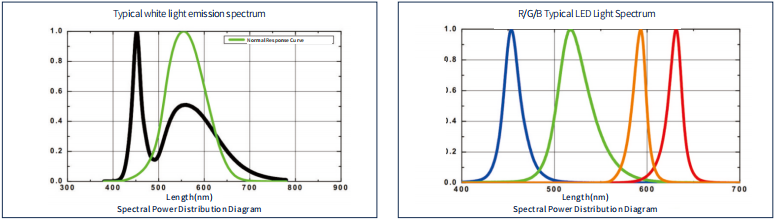

Spectral Graphs
——

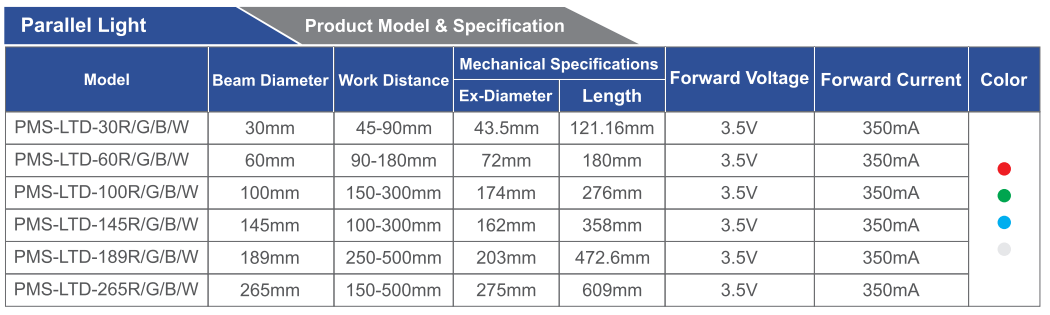

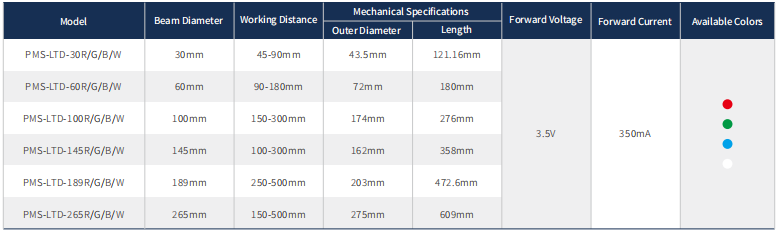

Product Model & Specification
——

PMS-AT0.5

PMS-IC02

PMS-LA6.5-0.25
