Dome Light Source
Dome light source is suitable for objects with undulating and reflective surfaces
Optics General Catalog
Product Introduction
——
Dome light source is suitable for objects with undulating and reflective surfaces.
Product Advantage
——
Dome light is a diffuse reflection shadow free illumination. The light emitted by the LED arranged after the structure optimization is diffused by the spherical surface, and is smoothly and evenly irradiated on the surface of the measured object. This series of illumination have a large light diffusion surface, and can be uniformly irradiated on the measured object in all directions. Suitable for undulating surfaces Reflective objects, even curved metal surfaces, can be uniformly irradiated.

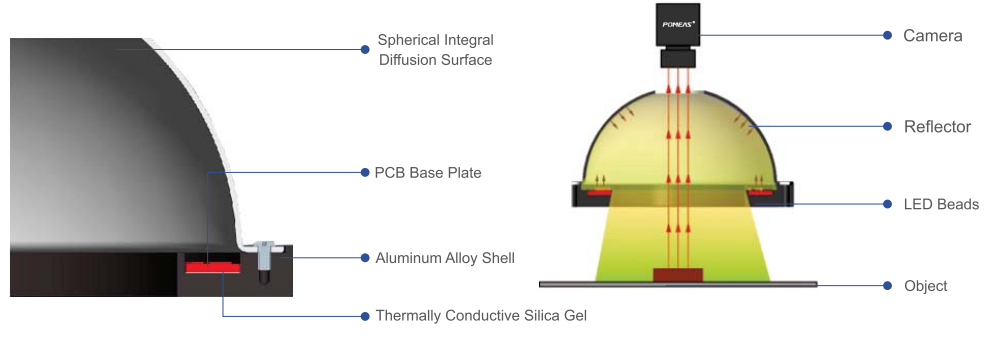

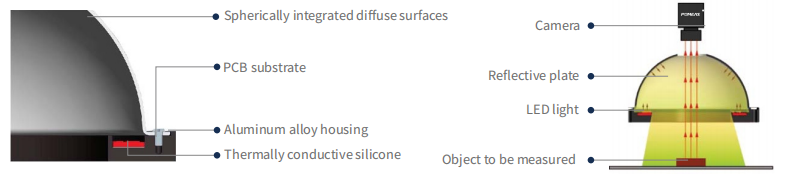

Illumination Structure
——
Application Fields
——
• Detection of reflective and uneven surface.
• Detection of IC surface characters.
• Detection of capacitor surface damage.
• Detection of instrument panel with glass surface.
• Detection of uneven capacitor polarity on circuit board.

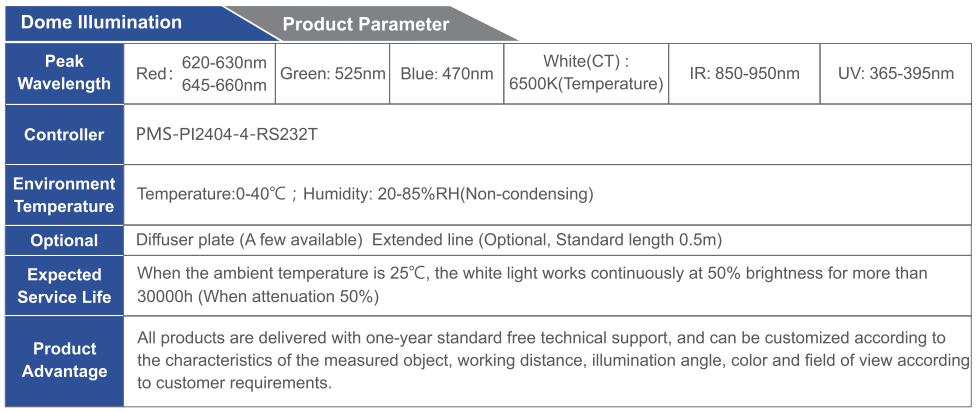

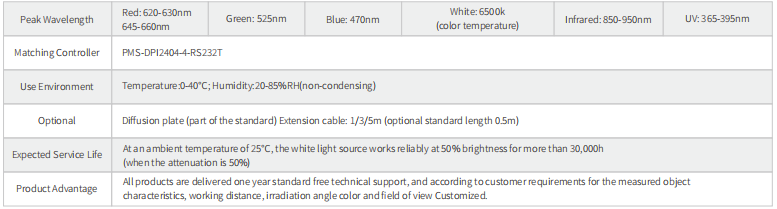

Dome Light Source Parameter Table
——

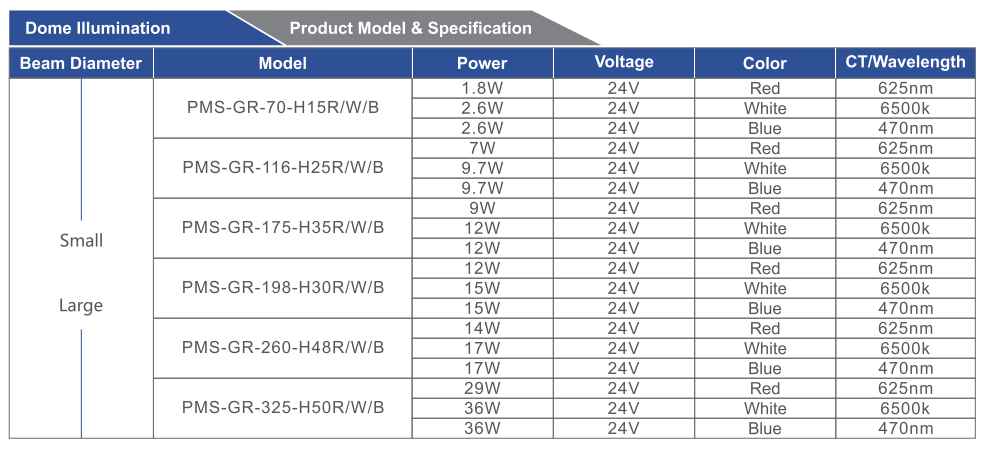

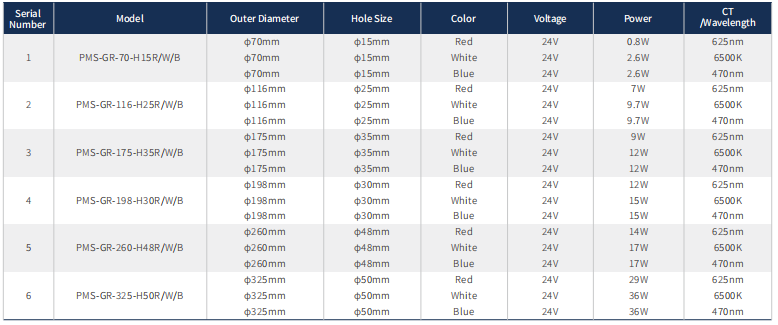

Dome Light Source Model & Specification
——

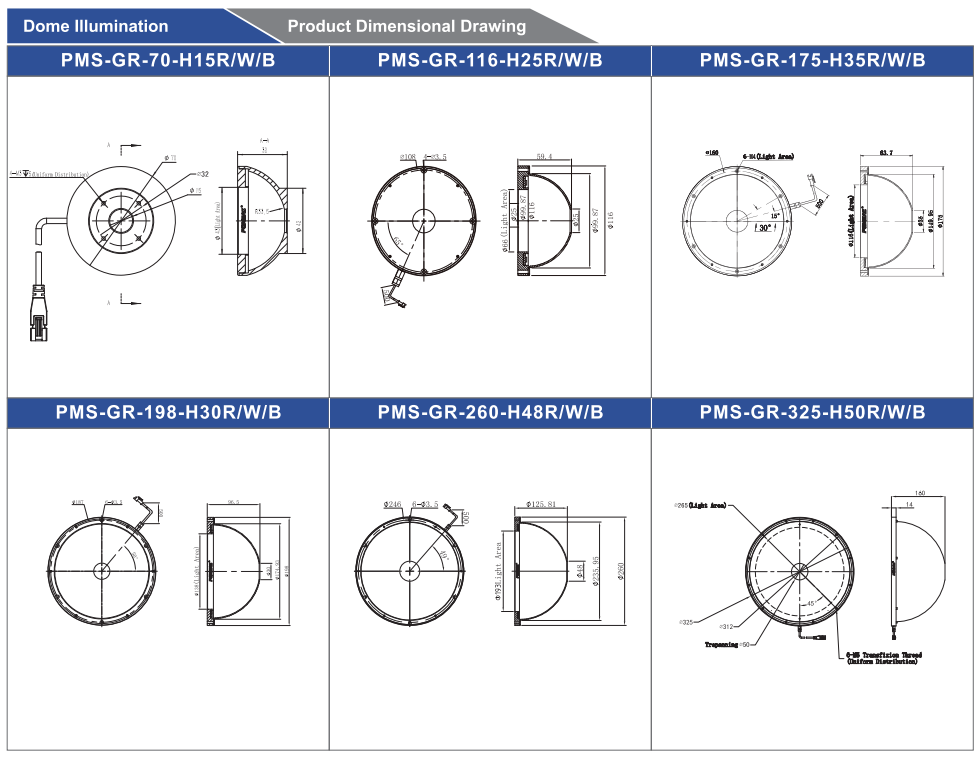

Dome Light Source Dimensional Drawing
——
