PMS-Z65M(A)

6.5X Motorized Zoom Lens with Coaxial Illumination, 6.5:1, 0.7X-4.5X, Max. sensor size 2/3", WD 80±2mm.

Optics General Catalog

  • Download now



    Product Introduction

    ——



    With professional optical design, the perfect combination of high resolution and big magnification ratio, the most universal zoom lens is widely used in various industry application.



    This 6.5X Motorized Zoom Lens with Coaxial Illumination 6.5:1,  0.7X-4.5X, Max. sensor size 2/3", WD 80±2mm.







    Products Advantage

    ——



    1.  Precision optical design, high resolution, low distortion, excellent optical performance.

    2. Super long working distance, big FOV range.

    3. Multiply coating technology, reduce the stray light and ghost, offering high quality image.

    4. Anodized metal part, improved endurance.

    5. Compact and reliable structure.







    Product Function

    ——









    Motorized Controller

    ——



    The integrated motorized control systems are suitable for all the POMEAS zoom lenses.

    Motorized controlling system can control single or dual channels via RS232 or USB.

    SKD software will be provided.









    Actual Image

    ——










    Application Fields

    ——



    Widely used in industry inspection, automation, electronic communication, semiconductor, scientific research, etc.

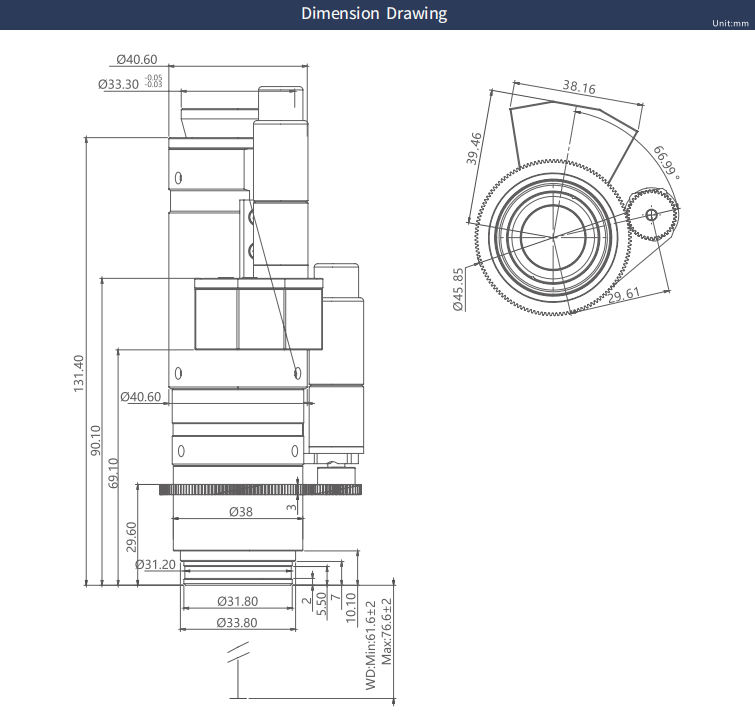

    Product Size Display

    ——

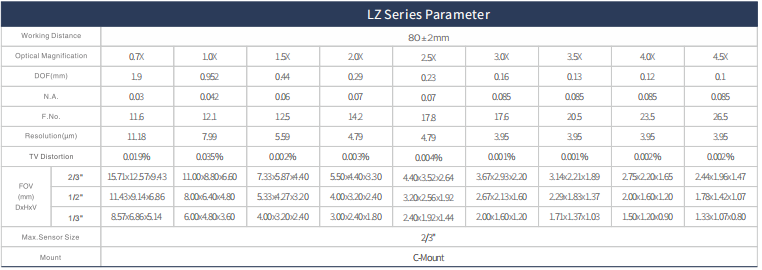

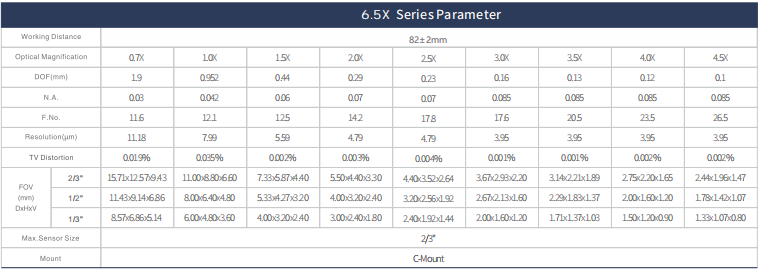

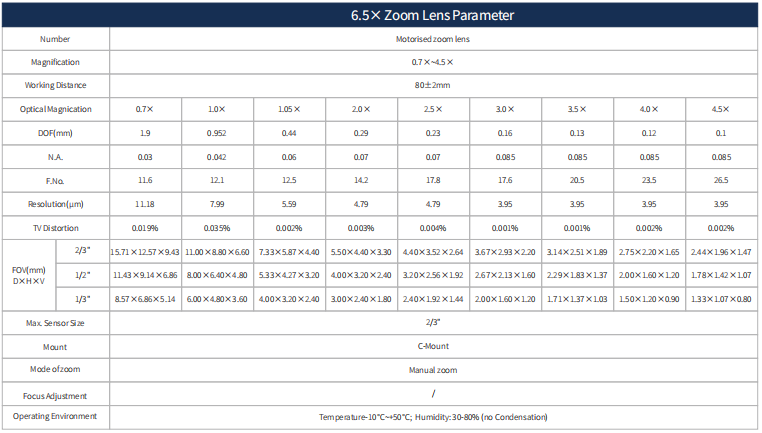

    6.5X Continuous Zoom Lens Parameter Table

    ——















    6.5X Continuous Zoom Lens Selection Diagram







    6.5X Continuous Zoom Lens Fov Table

    ——
