PMS-1236MC5M
5MP 2/3" Variable Focal LengthFA Lens. Focal length 12-36mm. Iris range F2.8-16. Focusing Range 0.15m- ∞(wide) 0.45- ∞(tele).
5MP 2/3’’ FA Lens PMS-1236MC5M
Product Introduction
——
Professional optical design, low distortion imaging, even light distribution in center and on the edge light.
Specially developed to avoid fixed focal length FA lens’s limitation, more flexible, higher performance/price ratio.
This 5MP 2/3" Machine Vision Variable Focal LengthFA Lens, Focal length 12-36mm, Iris range F2.8-16, Focusing Range 0.15m- ∞(wide) 0.45- ∞(tele).

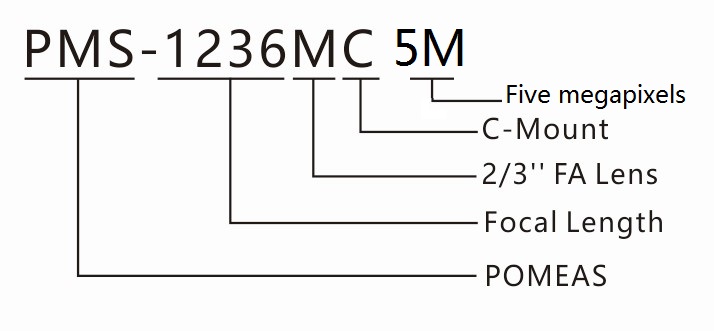

Naming Rule
——
Products Advantage
——
1. Support MP and 5MP 2/3” camera
2. Focus and iris locking screw to ensure stable focusing
3. Low distortion, sharp image
4. Compact structure, excellent optical performance
Actual Image
——
Application Fields
——
Widely used in machine vision, automatic production and electronic communication field.

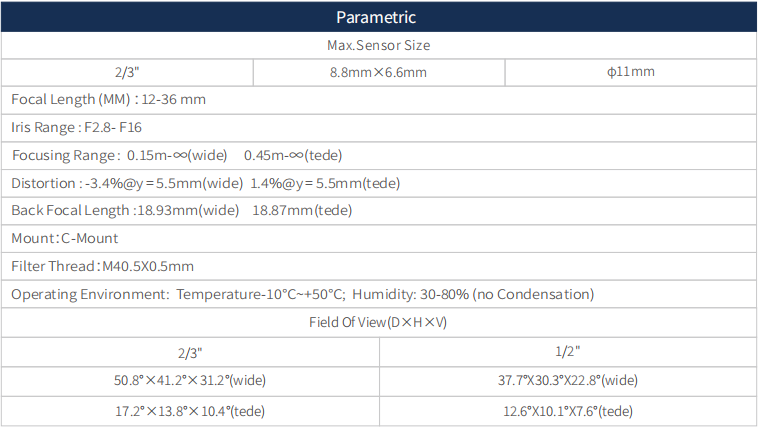

Variable Focal Length FA Lens Parameter
——
