20MP1.1'' machine vision FA lens PMS-50VC20M-C, POMEAS

PMS-50VC20M-C

20MP 1.1" FA lens, 50mm focal length, F2.8~16 aperture range, focus range 0.25m~∞.

Optics General Catalog

Download now

Product Introduction

——

• High resolution.
• Multi layer coating, high transmittance, effective suppression of stray light.
• Compact structure, small shape, more suitable for integrated application.
• Lower distortion rate for more application requirements

Products Advantage

——

1. Support 20MP 1.1”camera

2. Focus and iris locking screw to ensure stable focusing

3. Low distortion, sharp image

4. Compact structure, excellent optical performance

Actual Image

——

Product Application

——

Widely used in machine vision, production automation and other industries.

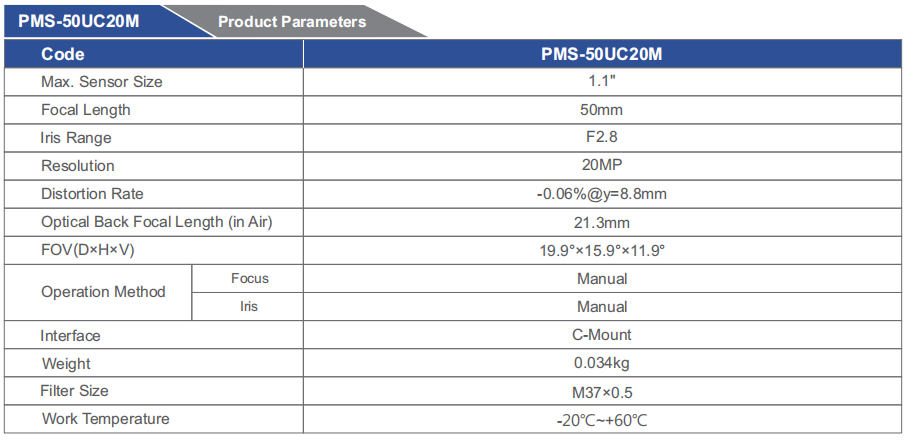

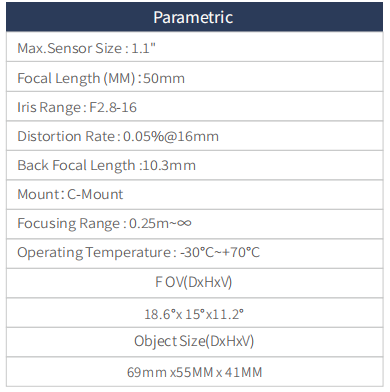

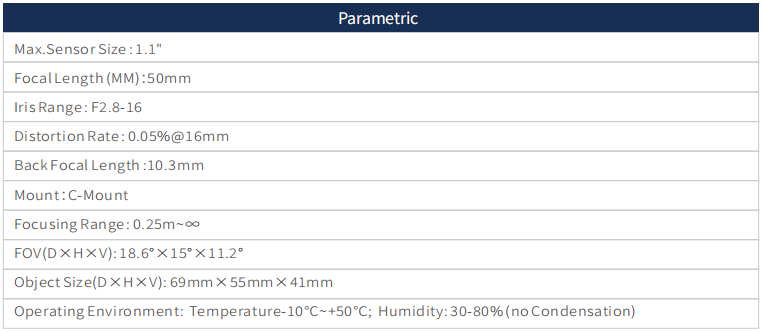

Product Parameter

——
