12MP 4/3'' machine vision FA lens-POMEAS

PMS-12XC12M

Focal length 12mm, Iris range F2.0-F22, Focusing Range 0.15m- ∞, 12MP 4/3'' Machine Vision FA Lens, with Low distortion imaging, high resolution, sharp image and high contrast,

Optics General Catalog

Download now

Product Introduction

——

• High resolution.
• Multi layer coating, high transmittance, effective suppression of stray light.
• Compact structure, small shape, more suitable for integrated application.
• Anti vibration and anti impact function.

Products Advantage

——

1. Support 12MP 4/3”camera

2. Focus and iris locking screw to ensure stable focusing

3. Low distortion, sharp image

4. Compact structure, excellent optical performance

Actual Image

——

Product Application

——

Widely used in machine vision, production automation and other industries.

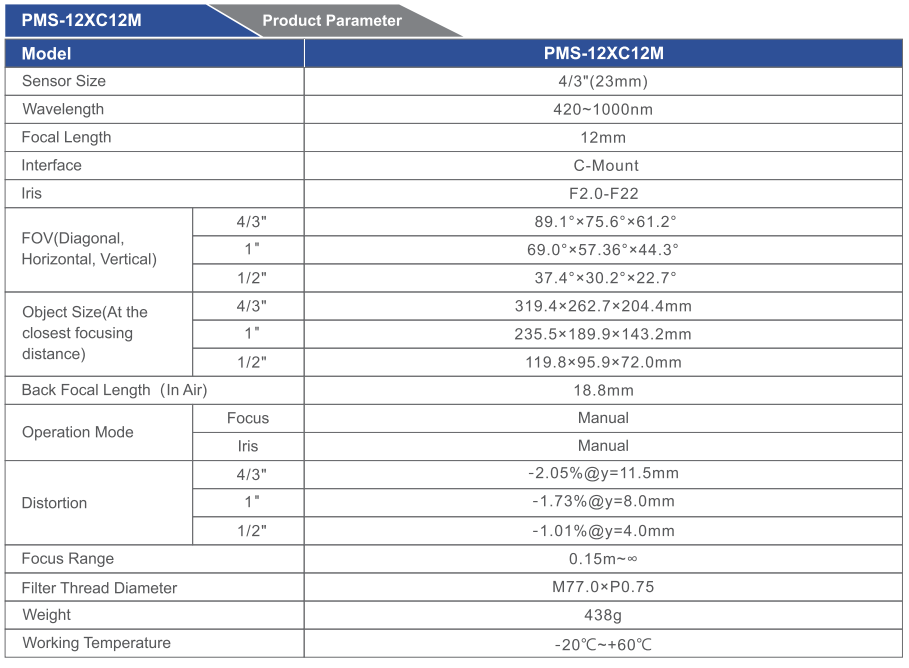

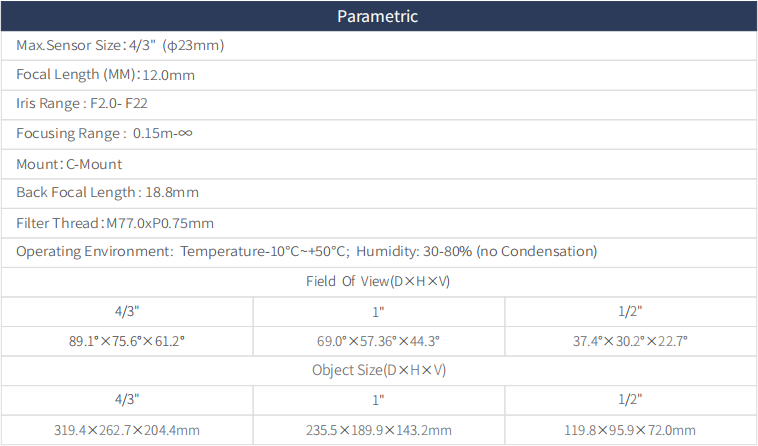

Product Parameter

——

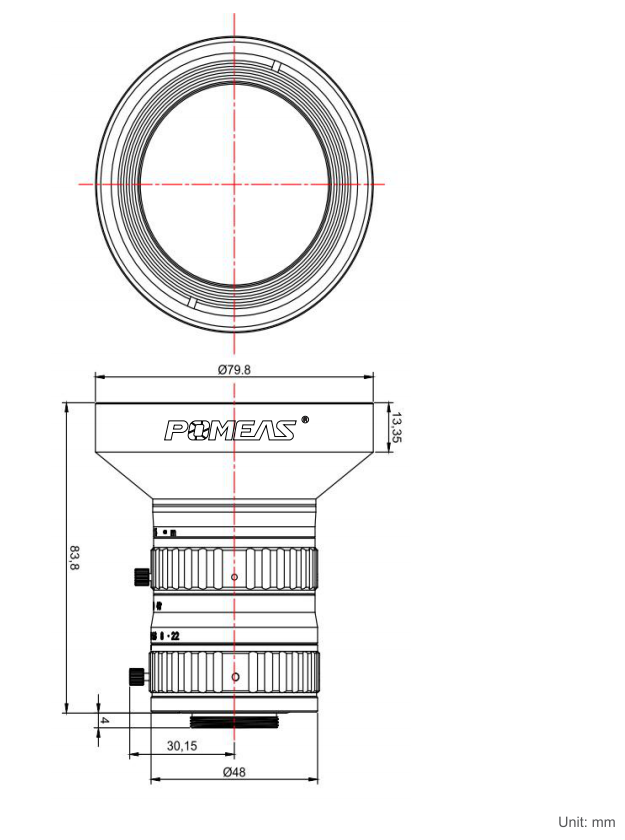

Product Size Display

——
