5MP 1" Machine Vision FA Lens. PMS-20LC5M

PMS-20LC5M

5MP 1" Machine Vision FA Lens. Focal length 20mm, Iris range F1.6-F22, Focusing Range 1m- ∞.

FA LENS

Download now

Product Introduction

——

Professional optical design, low distortion imaging, even light distribution in center and on the edge light.

High resolution, sharp image and high contrast, competitive products

5MP 1" Machine Vision FA Lens. Focal length 20mm, Iris range F1.6-F22, Focusing Range 1m- ∞.

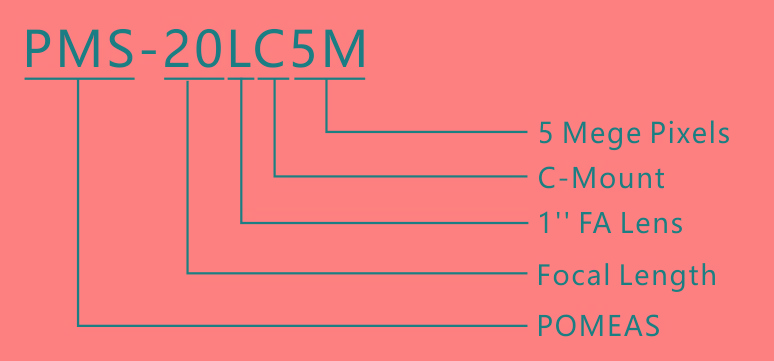

Naming Rule
——

Products Advantage

——

1. Support 5MP 1” camera

2. Focus and iris locking screw to ensure stable focusing

3. Low distortion, sharp image

4. Compact structure, excellent optical performance

Actual Image

——

Application Fields

——

Widely used in machine vision, automatic production and electronic communication field.

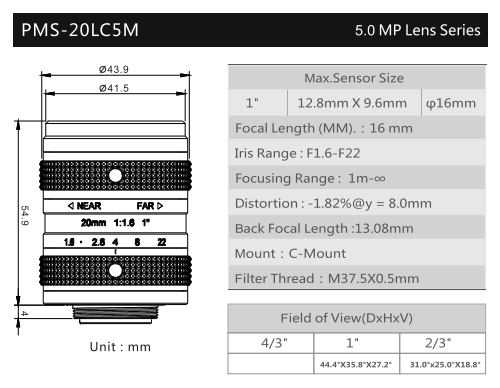

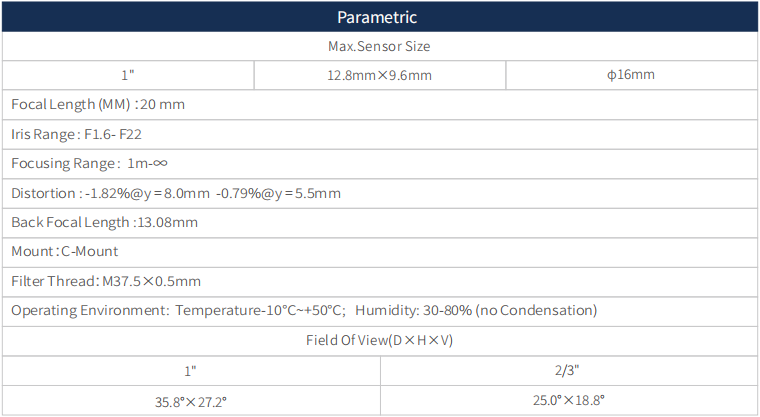

FA Lens Parameter

——

PMS-AT0.5

PMS-IC02

PMS-LA6.5-0.25
