PMS-1ST65-C

Coaxial Standard Telecentric Lens 1X, Max. sensor size 1/2", WD 65mm.

Optics General Catalog

  • Download now





    Product Introduction

    ——



    This series telecentric lens have fixed magnification and working distance. High resolution, low distortion,  super cost-effective high performance, support custom services.



    This Coaxial Standard Telecentric Lens 1X, Max. sensor size 1/2", WD 65mm.







    Naming Rule
    ——










    Product Advantage
    ——



    1. This series telecentric lens adopts objective telecentric design, which have features of high DOF, high resolution and low distortion;

    2. Support C-mount camera with max sensor size as 1/2";

    3. With fixed magnification and working distance;

    4. Coaxial function is optional, coaxial light is even;

    5. Standard C-mount;

    6. Can work with prism.






    Actual image
    ——











    Application Fields

    ——



    Positioning inspection of mobile screen and PCB printing industry.

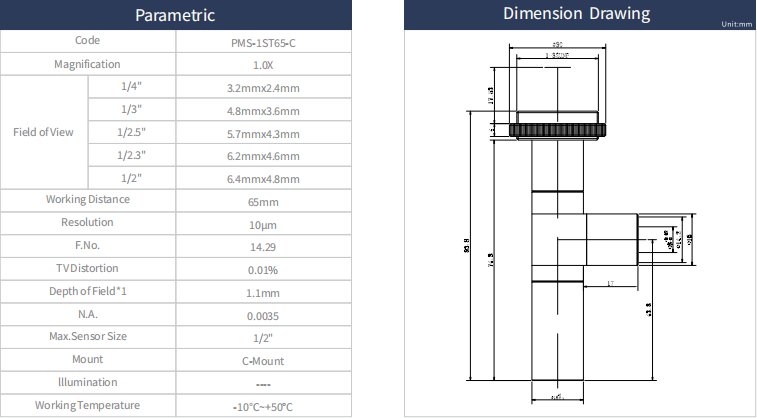

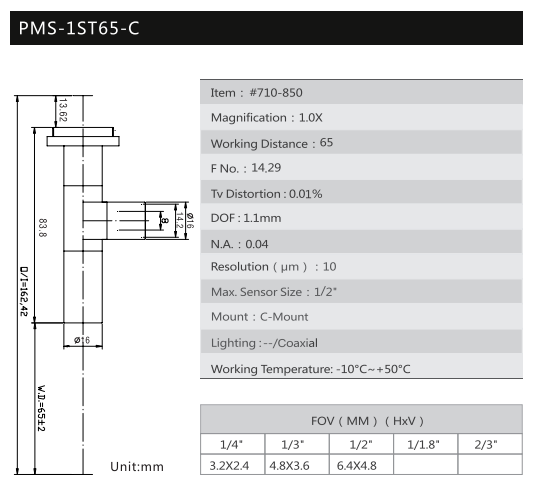

    Product Size Display

    ——
