PMS-2ST150
Standard Telecentric Lens 2X, Max. sensor size 1/2", WD 150mm.
Optics General Catalog
Product Introduction
——
This series telecentric lens have fixed magnification and working distance. High resolution, low distortion, super cost-effective high performance, support custom services.
This Standard Telecentric Lens 2X, Max. sensor size 1/2", WD 150mm.
Naming Rule
——
Product Advantage
——
1. This series telecentric lens adopts objective telecentric design, which have features of high DOF, high resolution and low distortion;
2. Support C-mount camera with max sensor size as 1/2";
3. With fixed magnification and working distance;
4. Coaxial function is optional, coaxial light is even;
5. Standard C-mount;
6. Can work with prism.
Actual image
——
Application Fields
——
Positioning inspection of mobile screen and PCB printing industry.

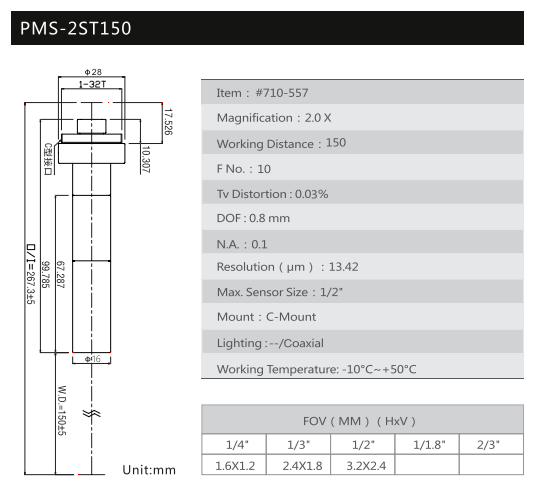

Product Size Display
——

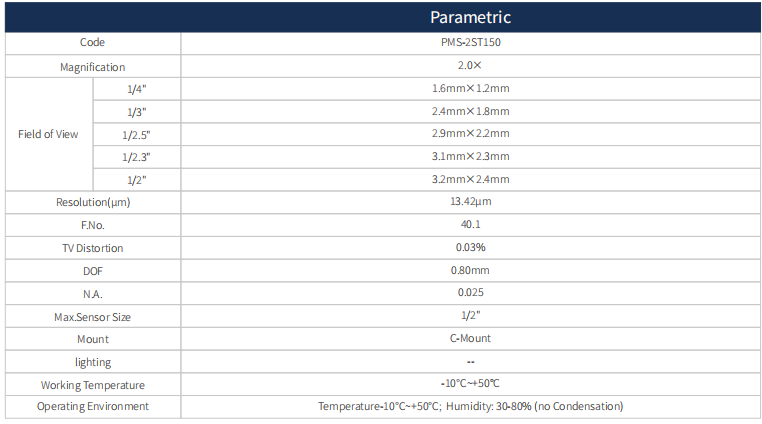

Standard Telecentric Lens Parameter
——
