PMS-8GX9.5
Standard Telecentric Lens 8X, Max. sensor size 1/3", WD 9.5mm, M12-mount.
Optics General Catalog
Product Introduction
——
This series telecentric lens have fixed magnification and working distance. High resolution, low distortion, super cost-effective high performance, support custom services.
This Standard Telecentric Lens 8X, Max. sensor size 1/3", WD 9.5mm, M12-mount.
Naming Rule
——
Product Advantage
——
1. This series telecentric lens adopts objective telecentric design, which have features of high DOF, high resolution and low distortion;
2. Support M12-mount. camera with max sensor size as 1/3";
3. With fixed magnification and working distance;
4. Coaxial function is optional, coaxial light is even;
5. Can work with prism.
Actual image
——
Application Fields
——
Positioning inspection of mobile screen and PCB printing industry.

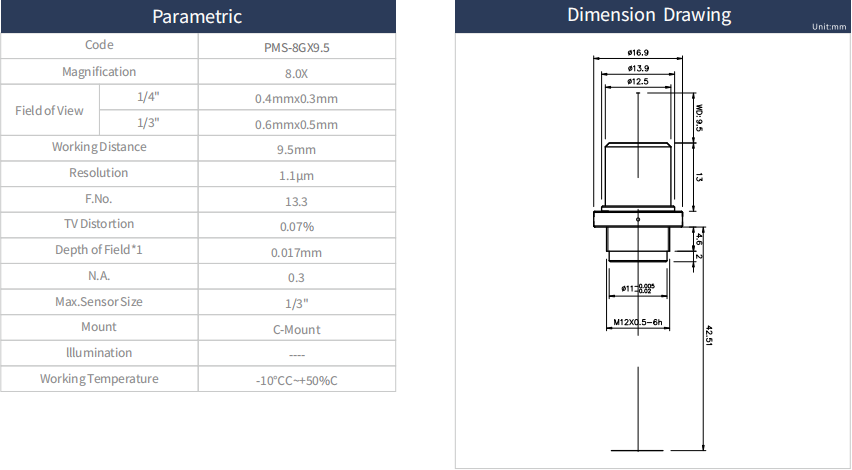

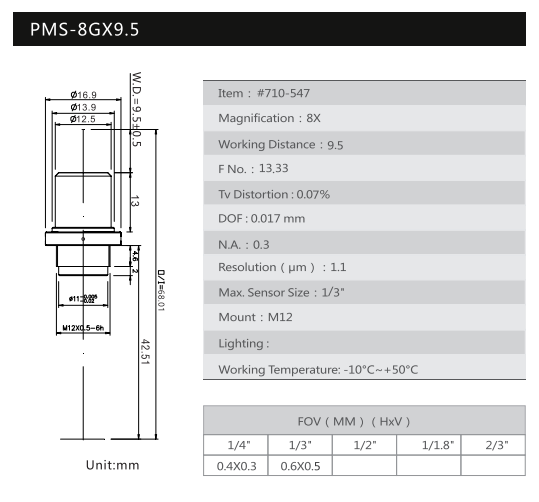

Product Size Display
——
