Macro Telecentric Lens,PMS-03ML185

PMS-03ML185

Macro Telecentric Lens 0.3X, Max. sensor size 2/3", WD 185mm.

Optics General Catalog

Download now

Product Introduction

——

High resolution, low distortion, even brightness, suitable for high precision inspection and measurement.

This Macro Telecentric Lens, 0.3X, Max. sensor size 2/3", WD 185mm.

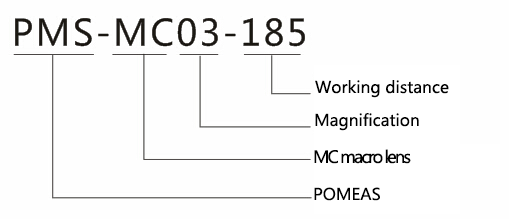

Naming Rule
——

Products Advantage

——

1. Support MP camera with 2/3 '' sensor;

2. Standard C-mount;

3. Super high cost-efficient;

4. Many magnifications is optional.

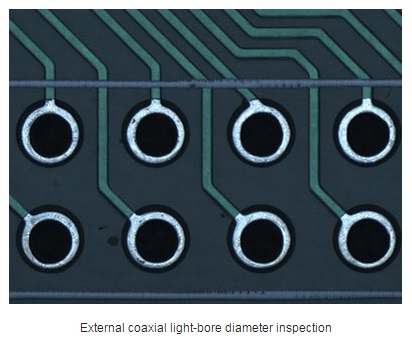

Actual Image

——

Application Fields

——

Can be applied in high precision measurement of large objects and machine vision industry.

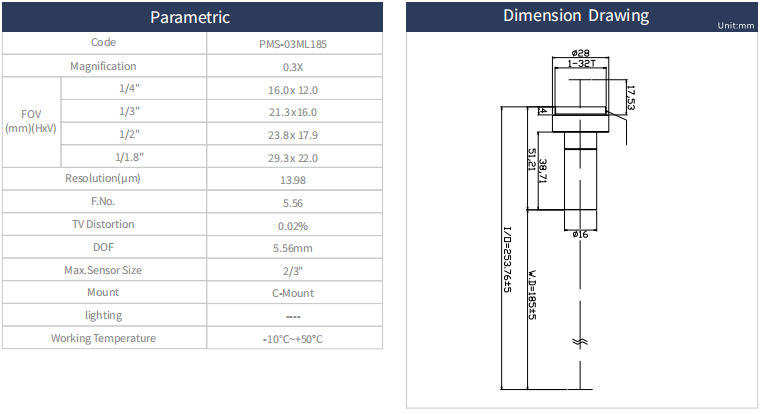

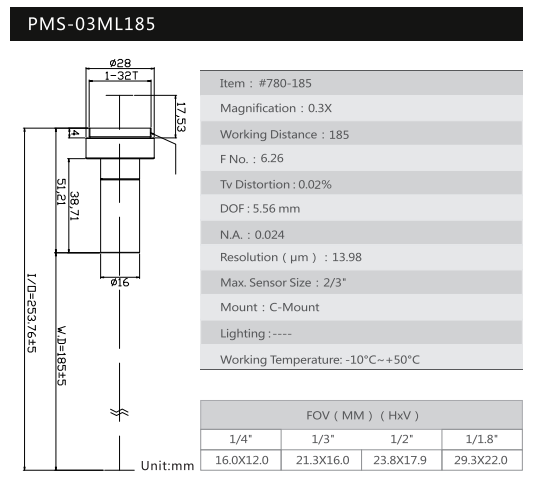

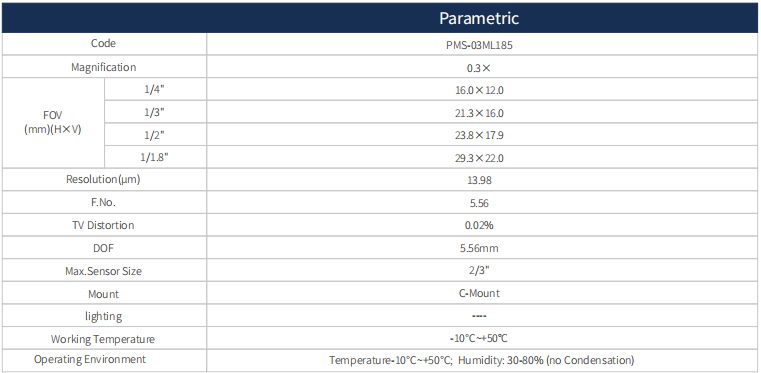

Macro Telecentric Lens Parameter

——

PMS-AT0.5

PMS-IC02

PMS-LA6.5-0.25
