In the inspection phase of precision manufacturing, the “near-large, far-small” perspective error caused by standard lenses often acts as a hidden threat that undermines measurement stability. When the object being measured undergoes slight displacement or exhibits variations in thickness, conventional optical systems often cause the dimensional data calculated by the software to drift, thereby affecting the quality of the final product.

This is where the irreplaceable value of a telephoto lens lies.

Physical advantages of a telecentric optical path: Changes in height no longer affect dimensional measurements.

Unlike ordinary lenses, telecentric lenses use an aperture diaphragm to ensure that the principal rays enter the image plane parallel to the optical axis. This means that regardless of how the subject moves within the depth of field (as long as it does not exceed the depth of field limits), the magnification remains virtually constant.

In what situations is it recommended to use a telecentric lens?

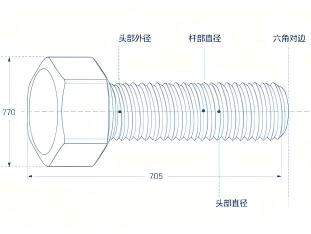

1. Workpieces with stepped profiles or significant variations in thickness: such as screws, washers, and connector pins.

2. Applications requiring high-precision positioning: such as semiconductor wafer mounting and LCD panel alignment.

3. Measurements sensitive to optical distortion: such as micro gears with diameters of 0.5 mm or less.

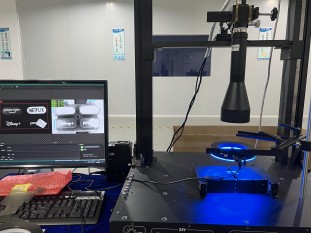

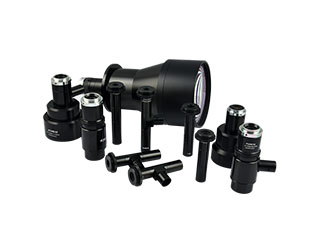

Highlights of the POMEAS Solution

When designing telecentric lenses, we focused on optimizing the following three aspects to meet the demands of harsh industrial environments:

1. Extremely low distortion: Typically kept below 0.05% to ensure consistent measurement results between the peripheral and central fields of view.

2. Large depth of field design: While maintaining high resolution, it offers a more generous depth of field range than comparable products, making it suitable for production lines subject to vibration or slight unevenness.

3. High compatibility: Supports industrial cameras with sensor sizes ranging from 1/2.5-inch to 2/3-inch and even larger.
