Image Measuring Instrument Application for Dimensional Measurement of Plastic Parts

share:

2023/11/27

author:adminBOSS

Plastic parts are an important part of modern industry and consumer products, and their dimensional accuracy has an important impact on product performance, reliability and safety.By measuring the dimensions of plastic parts, you can ensure that they meet design requirements and specifications, thereby safeguarding product quality and performance.





Measurement requirements:

Detect the length, width, margin, hole diameter, hole spacing and other dimensions of plastic parts.







Measurement solution:

Dimensional measurement of plastic parts requires high accuracy and high efficiency. The image measuring instrument just meets this demand and can achieve fast and accurate shell size measurement.



Detection effect diagram:

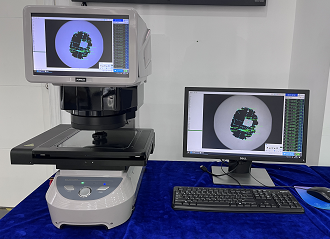

The POMEAS image dimension measuring instrument is a dimensional measurement system based on machine vision technology that can be used to measure the dimensions of plastic parts of various shapes. Compared with traditional measurement methods, image measuring instruments have the following advantages:



1. Non-contact measurement: The image measuring instrument adopts a non-contact measurement method, which can complete the measurement without touching the workpiece, thereby avoiding damage to the workpiece and errors in measurement accuracy caused by traditional contact measurement methods.



2. High-precision measurement: The image measuring instrument uses a high-resolution camera and a low-distortion telecentric industrial lens, which can achieve micron-level precision measurement and is more accurate than traditional measurement methods.



3. Automated measurement: The image measuring instrument adopts automated measurement technology, which can reduce errors caused by manual operations and improve measurement efficiency and accuracy.



4. Various measurement functions: The image measuring instrument can realize a variety of measurement functions, such as length, angle, roundness, aperture, etc., and is suitable for measuring various types of plastic parts.
