Telecentric Measurement System HM-Series
The HM series of Telecentric Measurement System is divided into the standard model HM-1040, the large field of view model HM-1065, and the super large field of view model HM-1120.
Telecentric Measurement System HM-Series
Products
——
The POMEAS Telecentric Measurement System HM Series supports a wide range of measurements with high versatility across multiple industries, and in-line intelligent dimensional inspection that is faster and more accurate.
Product Advantages
——
1、Even if the workpiece has positional offset, it can be measured accurately;
2、Ensure the accuracy of the whole field of view area;
3、Applicable to a wide range of inspection tools for measuring items.

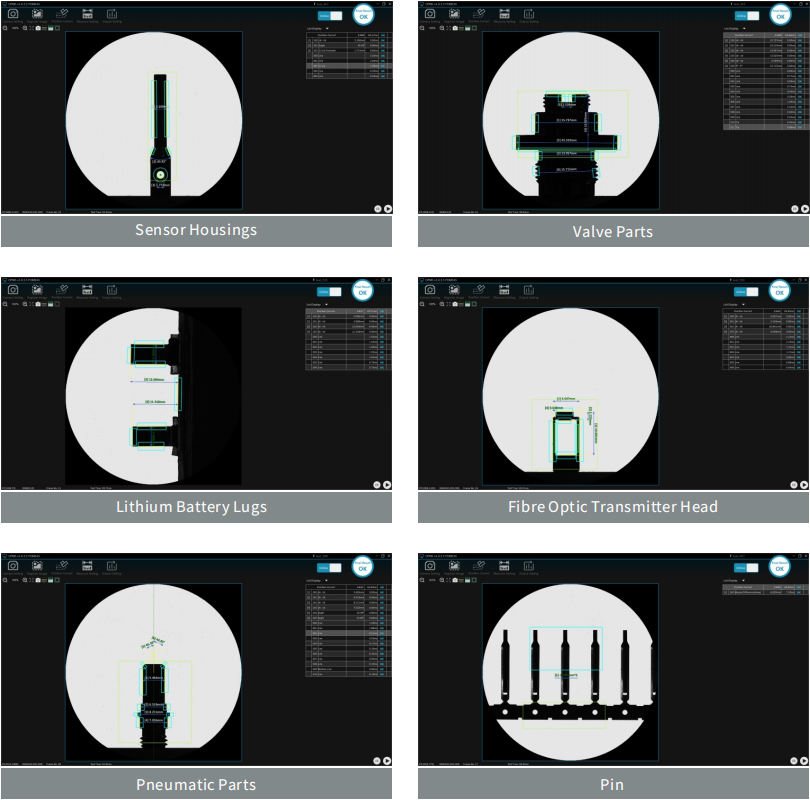

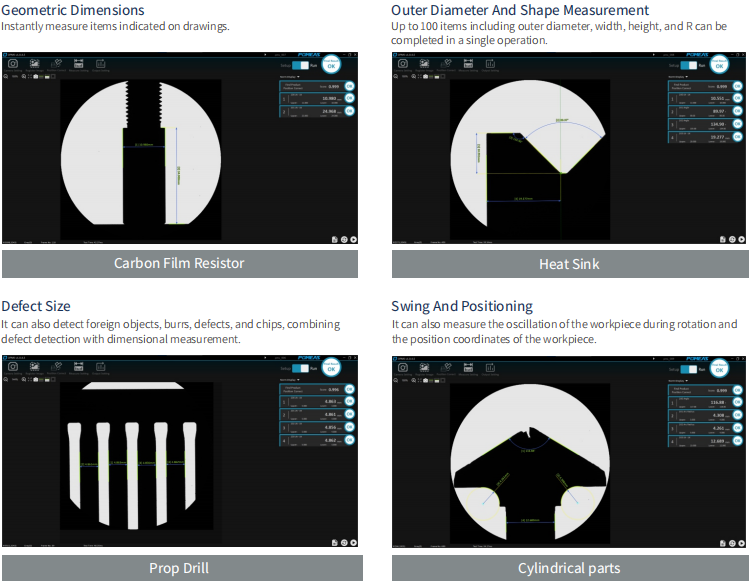

Product Cases
——

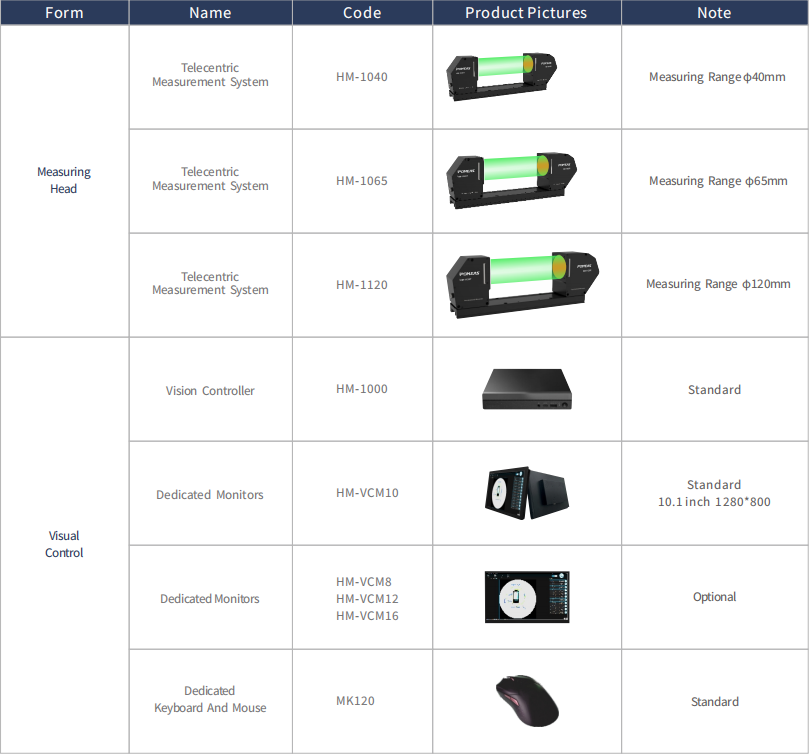

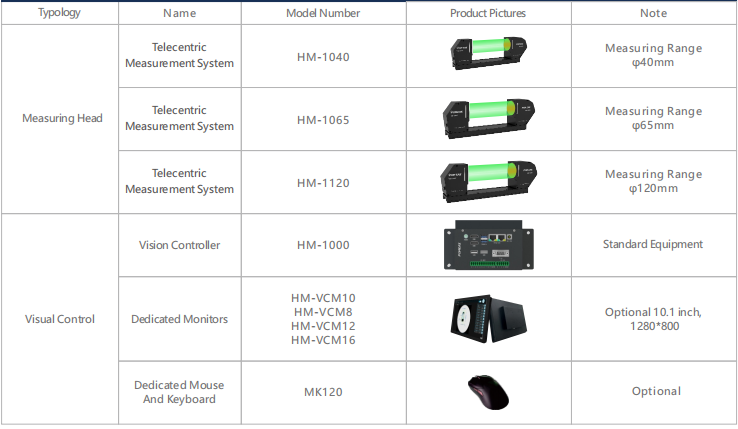

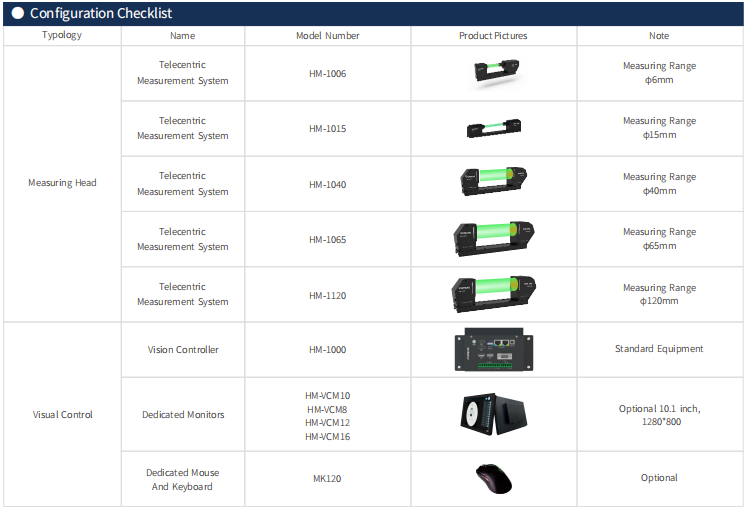

Configuration list
——

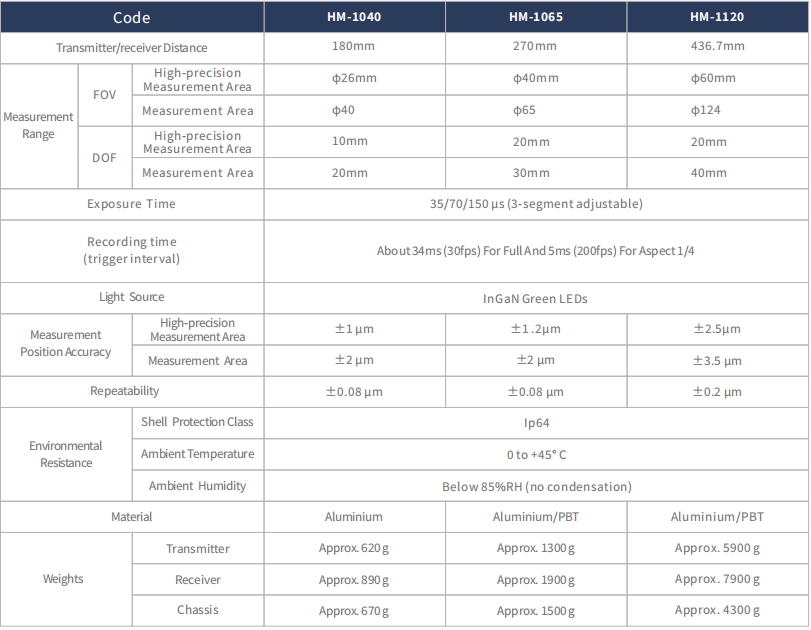

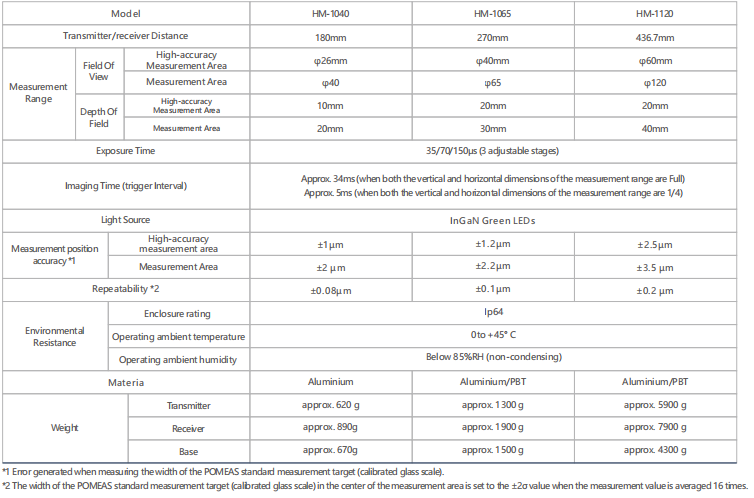

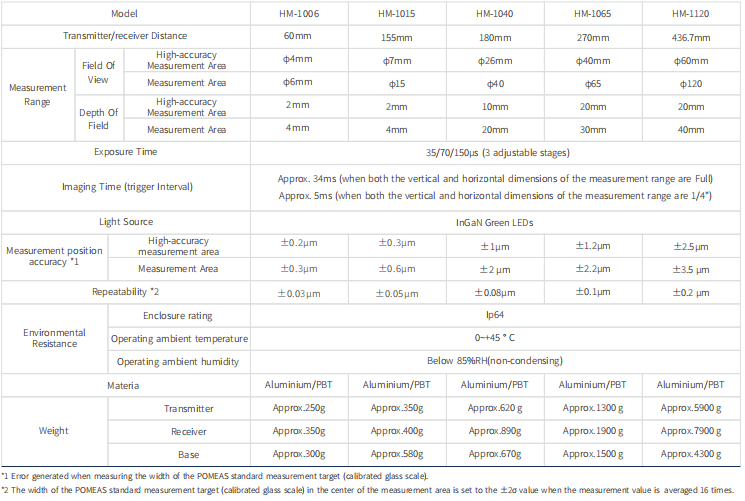

Telecentric Measurement System HM Series Parameters
——
ASK POMEAS
PRICE INQUIRY
REQUEST DEMO/TEST
FREE TRIAL UNIT
ACCURATE SELECTION
