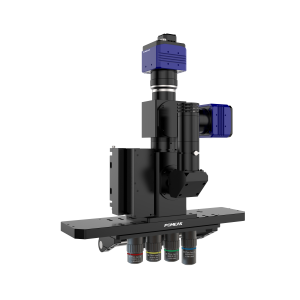

Focus X Laser Autofocus Microscopy System

POMEAS Focus X laser autofocus microscope system is compact and adopts co-axial focusing mode, effectively solving the problem of occlusion when focusing.

Optics General Catalog

  • Download now

    Products

    ——



    1, compact structure, the semiconductor laser, optical system high-speed signal processing module, laser control, motion control, as well as software algorithms in one focusing mode using co-axial focusing mode, effectively solve the problem of focusing when the blocking;

    2, focusing accuracy μm level, focusing speed up to 6.5khz level, with high focusing accuracy, focusing speed, product performance is stable and reliable, can be widely used in complex applications and environments.

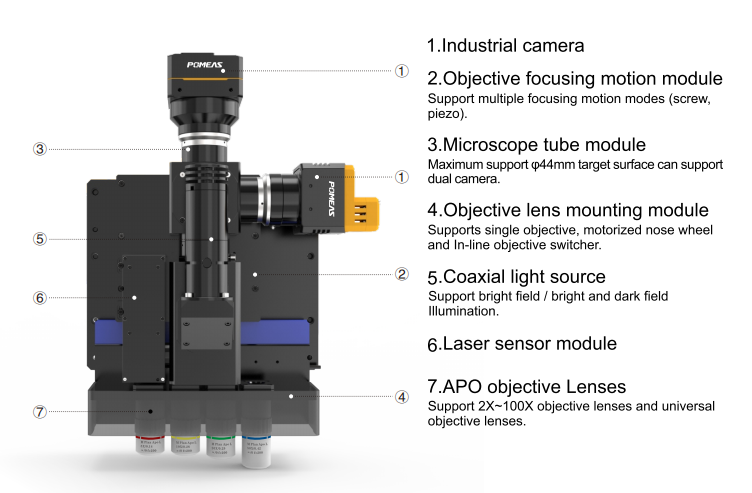

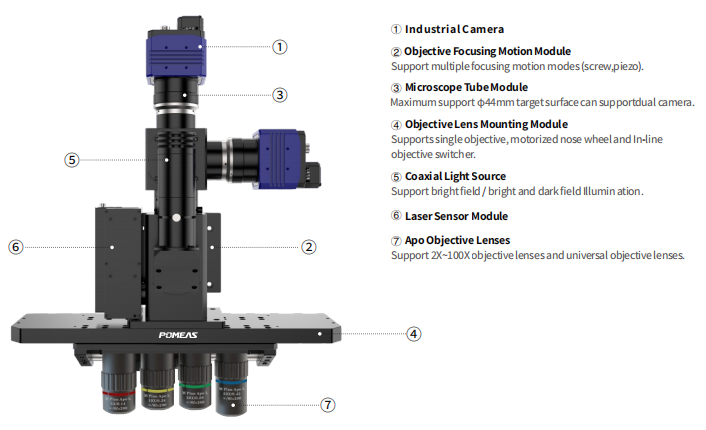

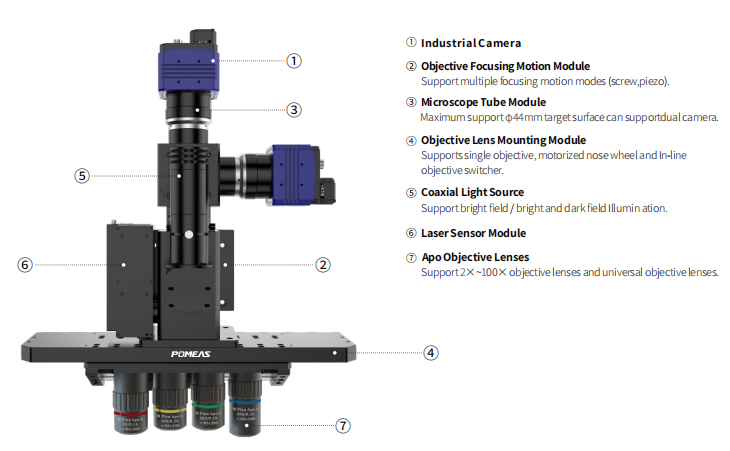

    Product Showcase

    ——





    Product Characteristics

    ——

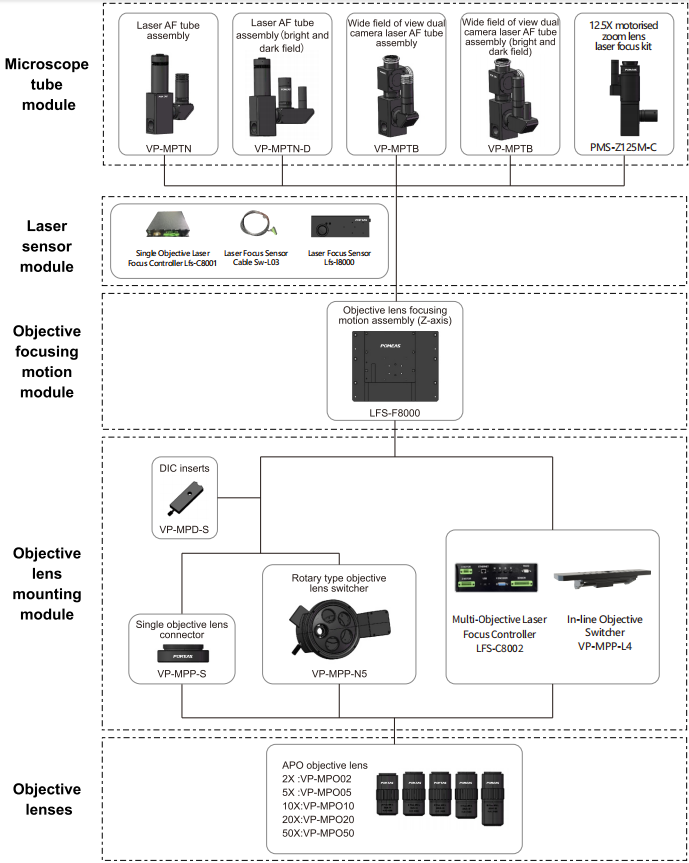

    A family of high precision, high efficiency Promise laser sensors is available to support integration into existing customer microscope systems;

    To meet the needs of each application, several sensor models are available, each with different options based on specific needs.

    They can also be widely used for real-time focusing for microscopic observation, precision laser welding, and precision laser cutting.

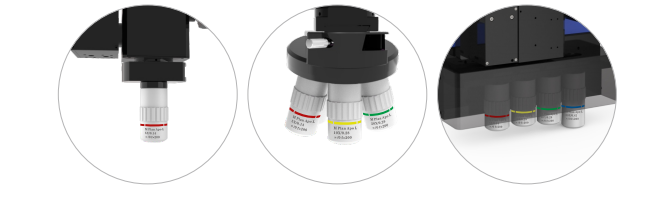

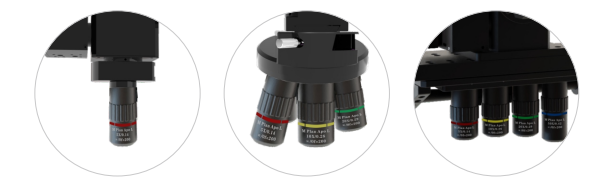

    Objective Lens Introduction

    ——



    Universal objective lenses, commonly used 2X, 5X, 10X, 20X, 50X, 100X objective lenses can be applied; can be in the stationary or real-time movement of a variety of types of surface focusing, such as surface focusing, layered focusing, etc.;

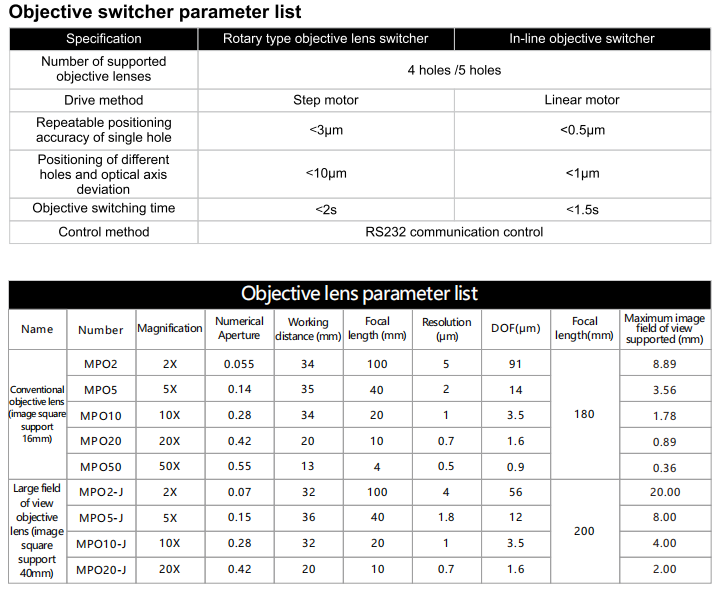

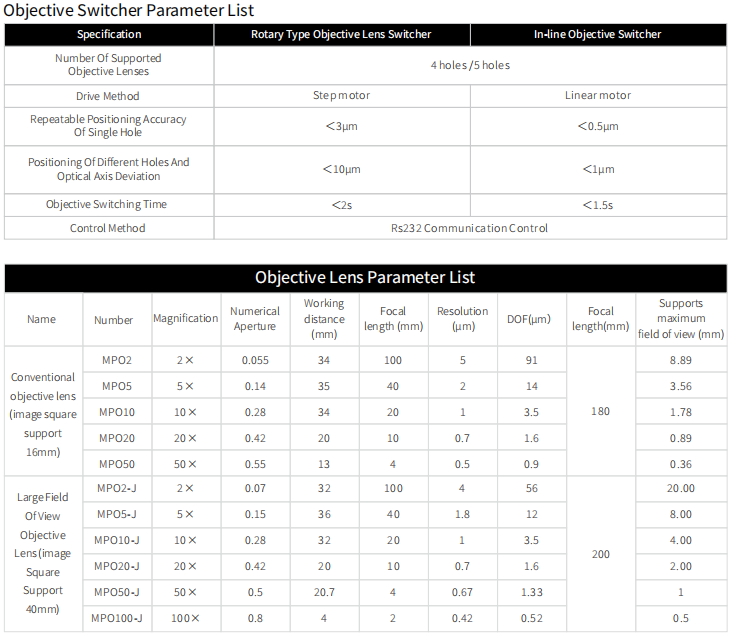

    Product Parameters

    ——
