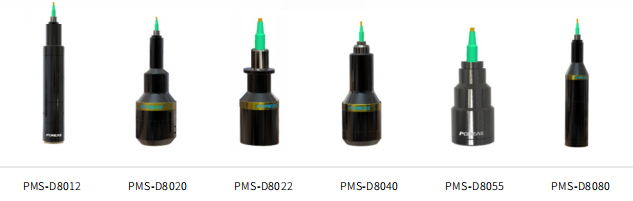

       The PMS-SFS-D8022 Color Spectral Confocal Displacement Sensor is not only more accurate than traditional triangulation sensors, but also provides stable and consistent results when measuring different materials or shapes.

Product Introduction

——

1, stable measurement of various materials, such as metal / ceramic / mirror / glass;

2, high temperature and high pressure and other harsh operating conditions can also be used normally;

3, the probe structure is lightweight, easy to integrate in the automated measurement applications in various industries;

4, suitable for a variety of workpiece shape (including deep holes / oblique / curved surface) of the characteristics of the size measurement, such as height / section difference / thickness / flatness / contour;

Product Applications

——

1. Mobile phone, tablet, computer and other metal chassis machining manufacturing industry;

2. PCB boards, connectors, IC chips and other electronic industries;

3. Panel, glass, tempered film and other industries;

4. Semiconductor wafers, green energy, photovoltaic and other industries.

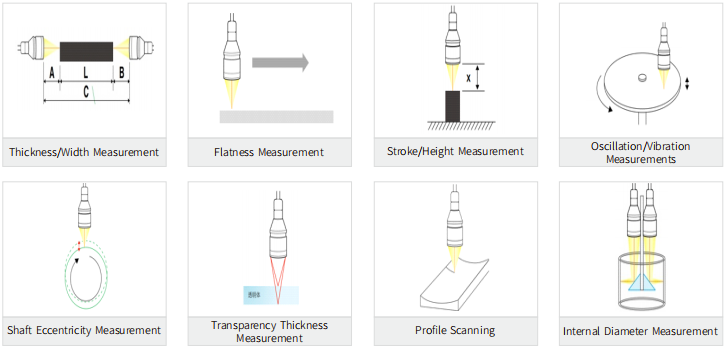

Areas of application

——

Widely used in electronics, semiconductor, panel, equipment and other industries. Measurement of height, segment difference, thickness, flatness, contour of glass, ceramics, mirrored metal, such as cell phones, PCB, tempered glass screen protector, semiconductor wafers.
