Spectrum Control Box PMS-SFS-C8000,Spectrum Control Box

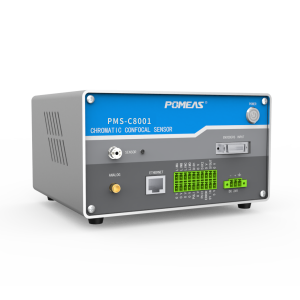

Spectrum Control Box PMS-SFS-C8000

PMS-SFS-C8000 spectral control box, XYZ grating, support for sweeping point cloud,

Optics General Catalog

Download now

Product Showcase

——

Controller Introduction

——

1、Support 3D surface topography measurement
2、non-transparent sample thickness measurement
3、Support analog output
4、independent dual fiber optic channel, while supporting two probe measurement

Controller Advantage

——

1. rich application functions, support a variety of measurement modes, can be equipped with full-featured PC measurement software
2. excellent optical design, linearity is better than the same kind in the market
3. Split-axis encoder position locking, fast response and high accuracy
4. Support multi-channel, one with multiple probes, reduce costs

Controller Features

——

◆ Dual-channel
◆ XYZ grating
◆ Support sweep point cloud
◆ Alignment Thickness Measurement
◆ Analog output (seamless piezoelectric actuation)
Support 1~2 way motor trapezoidal acceleration and deceleration control.

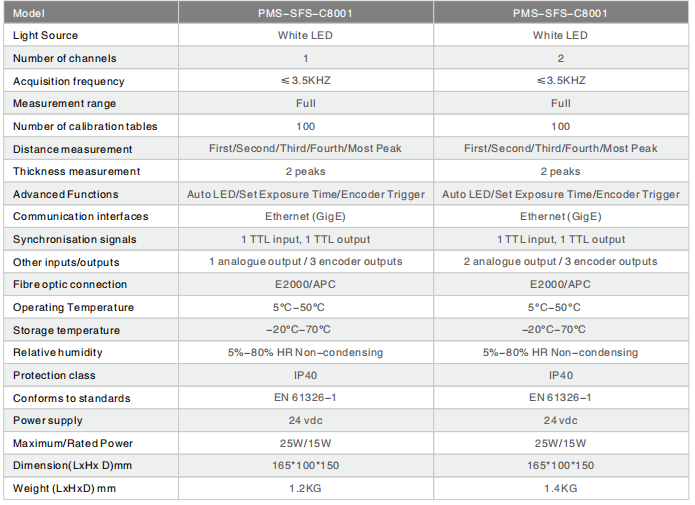

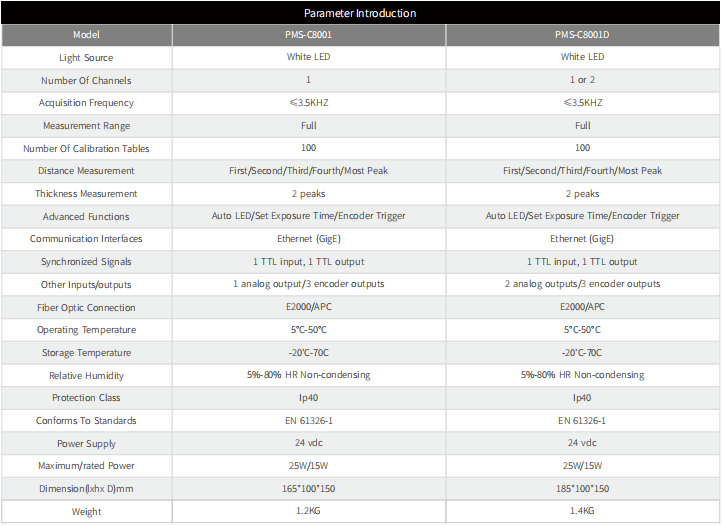

Control box parameters

——
