Spectrum Control Box PMS-C8001D,Spectrum Control Box

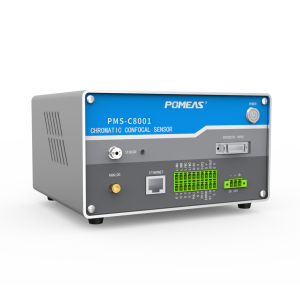

Spectrum Control Box PMS-C8001D

PMS-C8001D spectral control box, with dual channels, XYZ grating, support for sweeping point cloud, can be shot against the thickness of the measurement.

Optics General Catalog

Download now

Product Showcase

——

Controller Introduction

——

1、Support 3D surface topography measurement
2、non-transparent sample thickness measurement
3、Support analog output
4、independent dual fiber optic channel, while supporting two probe measurement

Controller Advantage

——

1. rich application functions, support a variety of measurement modes, can be equipped with full-featured PC measurement software
2. excellent optical design, linearity is better than the same kind in the market
3. Split-axis encoder position locking, fast response and high accuracy
4. Support multi-channel, one with multiple probes, reduce costs

Controller Features

——

◆ Dual-channel
◆ XYZ grating
◆ Support sweep point cloud
◆ Alignment Thickness Measurement
◆ Analog output (seamless piezoelectric actuation)
Support 1~2 way motor trapezoidal acceleration and deceleration control.

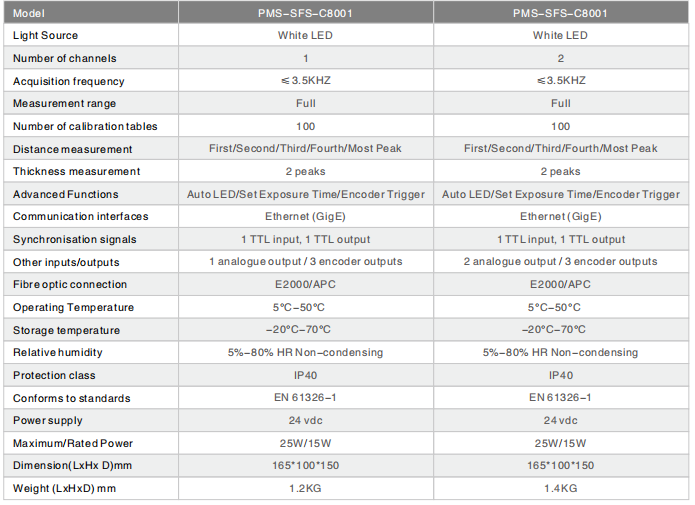

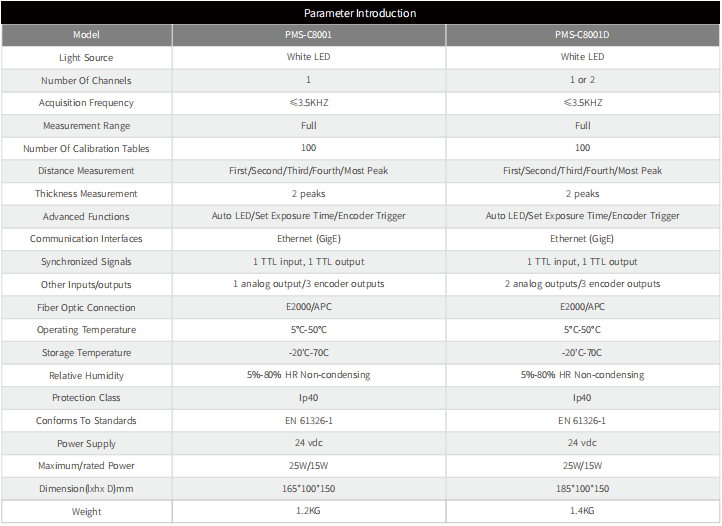

Control box parameters

——
