PMS-MPT-BF

The PMS-MPT-BF microscope unit has a φ40mm full-frame, infinitely long optical design and can be used for inspection of LCDs, OLEDs, PCBs, FPCs, FPDs, and semiconductors.

Optics General Catalog

  • Download now

    Products

    ——



    1.Adopting infinite optical design, the imaging targetsurface can support up to 2".
    2. Compatible with the mainstream brands of flat field achromatic long working distance objective lens.
    3. Professional coaxial optical path design, uniform illumination, clear image,high contrast.
    4.Modular design, can be equipped with bright field and dark field illumination, DIC function module and objective lens switching module, etc.
    5. Other functional extensions: such as dual-camera interface, coaxial multi-channel interface to join.

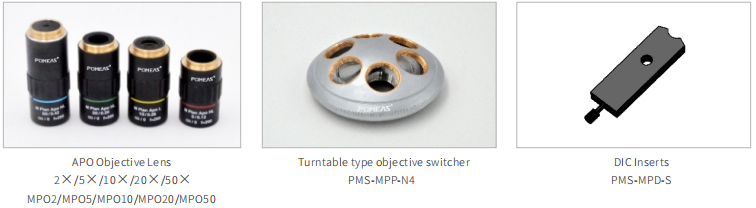

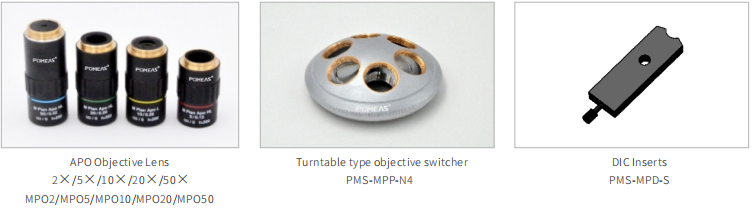

    Optional accessories

    ——



    1.APO objective lens 5X,10X,20X,50X etc;

    2.Nose wheel assembly .

    3.DIC insert

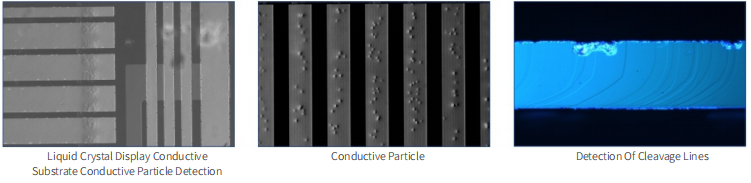

    Areas of application

    ——



    LCD/OLED/PCB/FPC/FPD and semiconductor inspection.

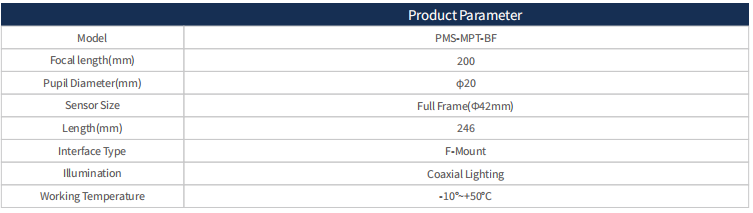

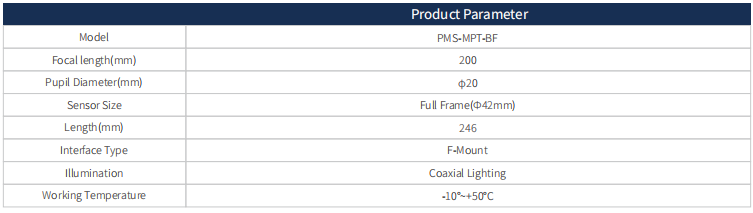

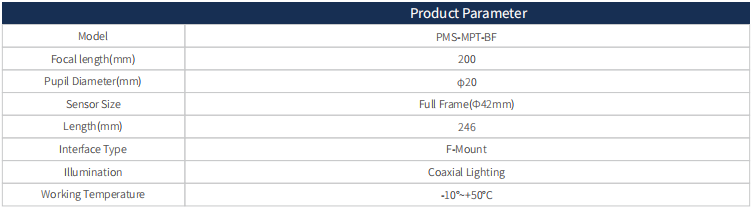

    Product Parameters

    ——
