EASY ROBOT FEEDER
The compact SCARA flexible loading machine is a highly efficient automated feeding device integrating vision and robotic arm systems. Its compact and portable design offers excellent cost-performan...
EASY ROBOT FEEDER
Product Introduction
——
The compact SCARA flexible loading machine is a highly efficient automated feeding system integrating vision and robotic arm operation. It can simultaneously perform precise identification and loading of multiple materials with varying shapes, sizes, and materials. Its compact design makes it suitable for confined spaces.

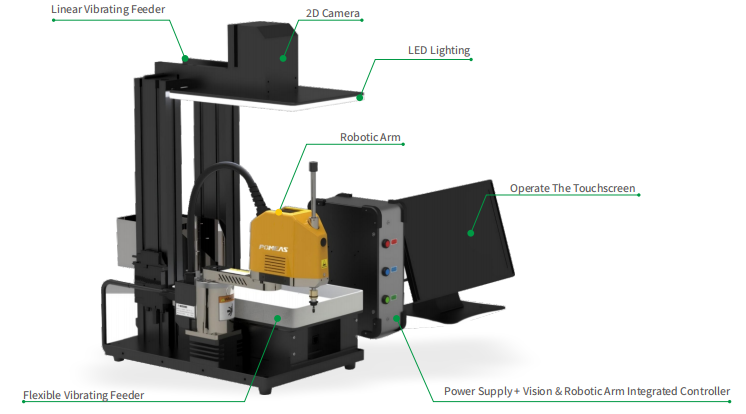

Product Composition Display
——
Simultaneously identifies and sorts 5 types of workpieces, with a production cycle time of 1.8–2.5 seconds per piece (including vibration and image capture time).
Visual Camera:
· Capable of identifying workpieces as small as 2mm
· Camera positioning accuracy: ±0.05mm
· Image processing time: 200 milliseconds
Robotic Arm：
· Repeatability accuracy ±0.05 mm
· Speed MAX=600mm/s
· Maximum load capacity = 250g

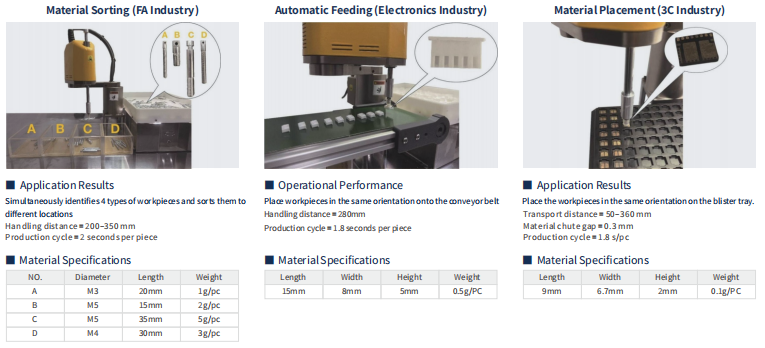

Product Case Studies
——

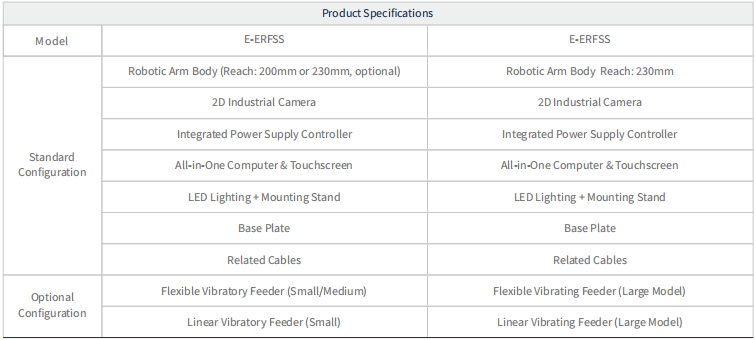

Product Specifications
——
