Products

——

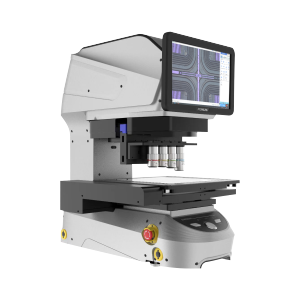

        The MICRO IMAGE3 is a digital microscope system that realizes laser focusing for infrared wafer AOI microscopy with lossless infrared penetration. It combines observation, photographing, and measurement in a single unit, and has observation performance that exceeds that of the human eye, allowing for both flat surface and 3D measurements to be taken by simply operating the laser pointer.

Product Advantages

——

1. It has a high resolution that matches the 4K image quality, and realizes a fast real-time large depth of field with the support of POMEAS Z-Stack shooting technology;

2. Positioning, focusing, and magnification conversion can be performed with the hand-held controller by placing the target on the platform, enabling intuitive observation of the target's position;

3. Seamless observation with smooth switching from low magnification 20X to high magnification 8000X.

4. The interface is simple and easy to operate, and can be used after a short period of training, so that the measurement results of any person can be consistent.

Product Showcase

——

Areas of application

——

◇ 3C Electronics/Mobile Phone/Watch/Ear/Glasses/Charger/Camera

◇ New Energy Battery/Automobile/Solar Energy

◇ Chip Manufacturing and Testing

◇ 5G manufacturing and testing
