PMS-6805-K
Professional optical path design, optical magnification of 0.7X-4.5X, zoom ratio of 6.5:1; based on the 1 “camera, can realize a large field of view observation.
Optics General Catalog
Products
——
The most versatile continuous zoom lens with professional optical path design, perfect combination of high resolution and high magnification, widely used in various industries.
This 6.5X motorized zoom coaxial lens, 6.5:1, 0.7X-4.5X, supports sensors up to 1”, WD 88±2mm.
Product Advantages
——
1. Professional optical path design, optical magnification of 0.7X-4.5X, zoom ratio 6.5:1
2. Based on 1” camera, it can realize large field of view observation.
3. Compact structure design, easy to integrate and install.

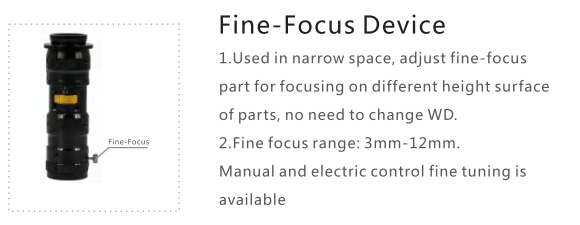

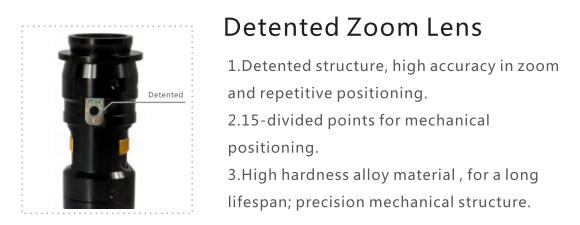

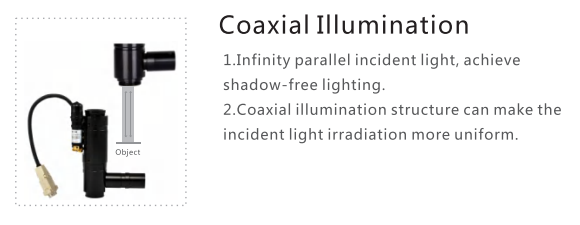

Product Features
——

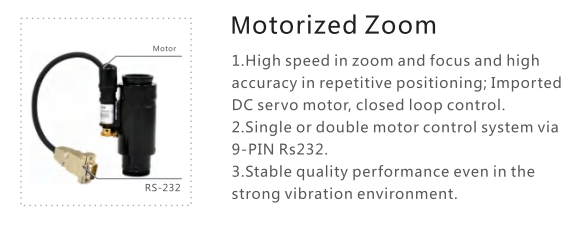

Electric Controller
——
All POMEAS zoom lenses can be ordered with a fully integrated motorized control system;
The motorized control system can be implemented as single or dual axis control via serial RS232 or USB port;
The underlying software code for the OEM platform can also be supplied.

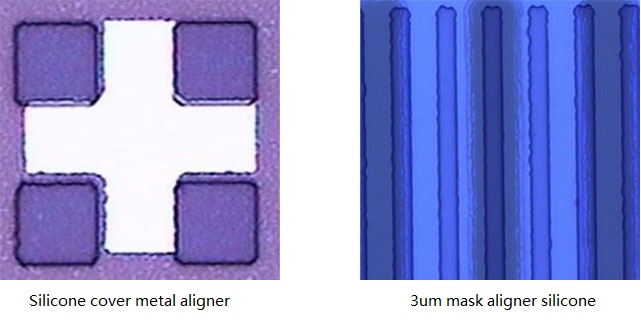

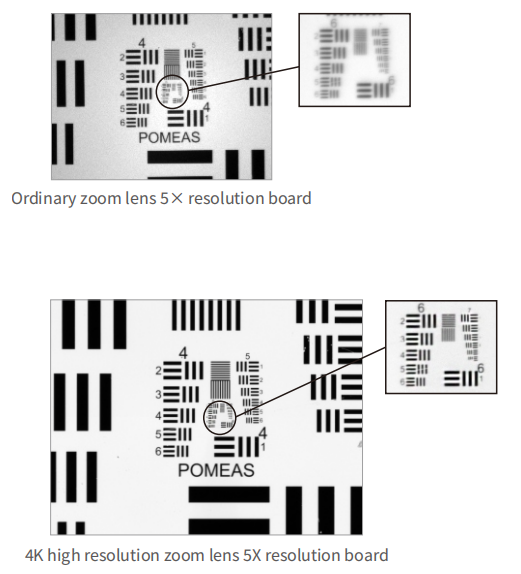

Actual effect diagram
——
Areas of application
——
It can be used in semiconductor, automation, electronic communication and other industries.

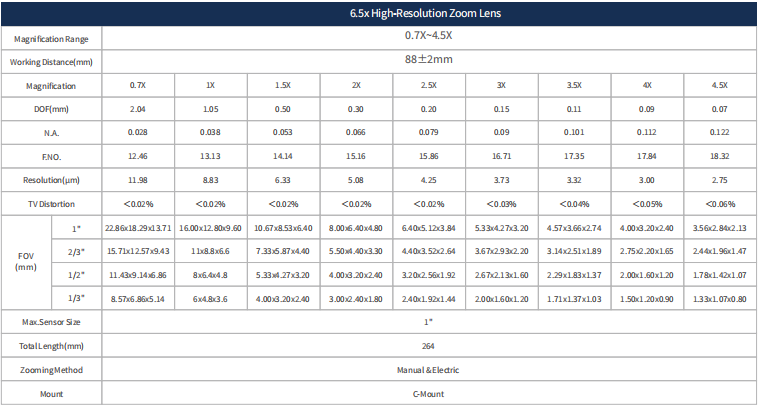

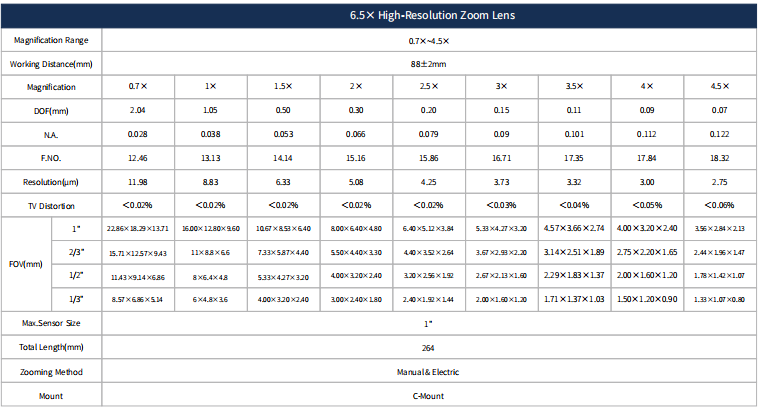

6.5X Continuous Zoom Lens Parameter Table
——
ASK POMEAS
PRICE INQUIRY
REQUEST DEMO/TEST
FREE TRIAL UNIT
ACCURATE SELECTION
