Product Introduction

——

Ultra-high zoom ratio with excellent optical performance for inspecting a wide range of components.

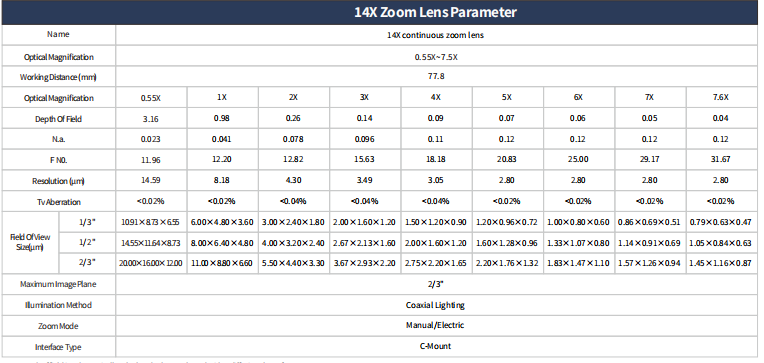

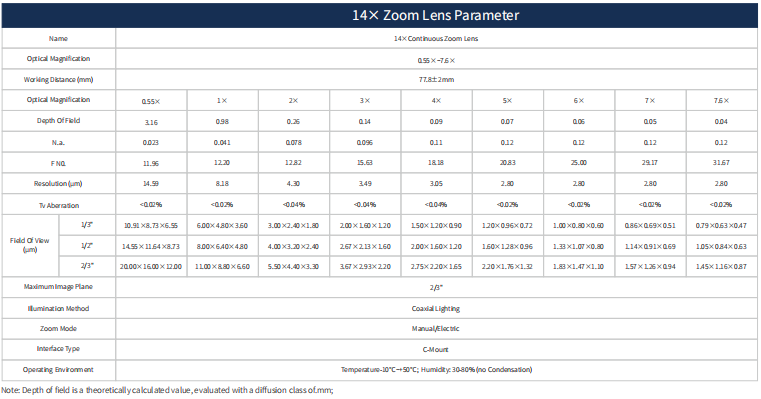

This 14X zoom coaxial lens, 14:1, 0.55X-7.6X, supports sensors up to 2/3", WD77.8mm.

Products Advantage

——

1、Higher magnification ratio, low magnification can observe a larger field of view, high magnification has a higher resolution.

2、Ultra-low distortion design, no need to distortion correction to get high precision data.

3、Fully support 2/3 inch target surface, high uniformity of imaging screen.

4、With absolute zero control technology to ensure the consistency of reset to zero magnification.

5、Precise tuning of the product to ensure that each shipment of lenses with the best performance.

Product Function

——

Motorized Controller

——

The integrated motorized control systems are suitable for all the POMEAS zoom lenses.

Motorized controlling system can control single or dual channels via RS232 or USB.

SKD software will be provided.

Actual Image

——

Application Fields

——

Widely used in industry inspection, automation, electronic communication, semiconductor, scientific research, etc.
