PMS-08ST90
Standard telecentric lens 0.8X, supports maximum sensor size 1/2", WD 90.5mm, C connector
Standard Telecentric Lens PMS-08ST90
Products
——
The series lenses are fixed magnification and working distance. All of them adopt the object-square telecentric design, featuring high depth of field, high resolution and low aberration. It has super high cost performance and supports customized service.
This standard telecentric lens 0.8X, supports maximum sensor size 1/2", WD 90.5mm, C interface.
Product Advantages
——
1. All adopt the object square telecentric design, featuring high depth of field, high resolution and low distortion.
2. Maximum support for 1/2'' target size camera with C interface.
3. with fixed magnification and working distance.
4. Coaxial light illumination is optional, uniform illumination.
5. Standard C interface.
6. Can be used with steering prism.
Actual effect picture
——
Areas of application
——
It can be used in industries such as cell phone screen alignment and PCB printing.

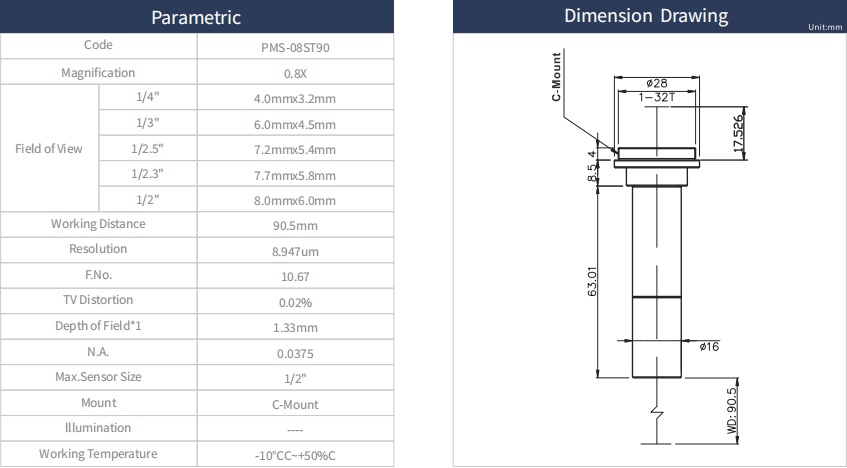

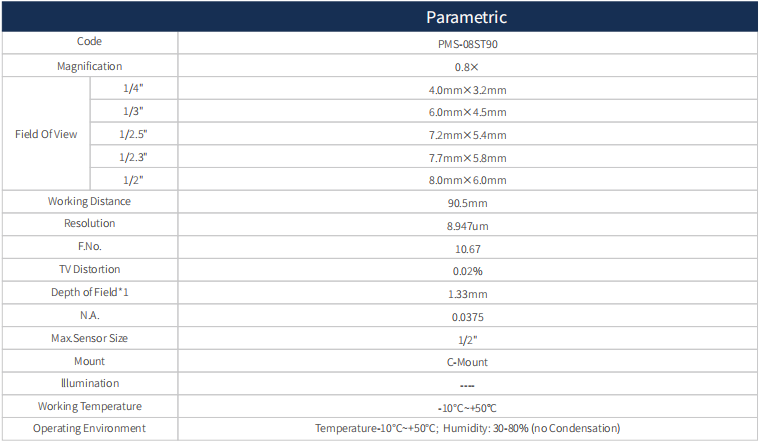

Product Parameters
——
