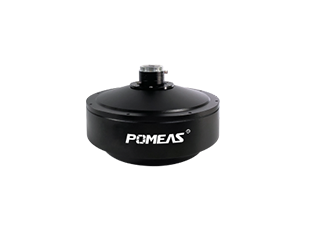

360° Inside Wall Lens
With its large viewing angle (82°) and innovative optical design, the 360° interior inspection lens has an extra large depth of field, imaging the top and bottom of an object with perfect clarity at t
Optics General Catalog
Products
——
Inside wall inspection lenses for applications such as photographing the bottom of an object's inner hole and vertical inner walls, there is no need to place the lens inside the hole, and the interior can be inspected from the outside, which greatly saves space and costs, and improves inspection efficiency.
With its large viewing angle (82°) and innovative optical design, the POMEAS 360° internal inspection lens has a large depth of field, allowing it to image the top and bottom of an object perfectly and clearly at the same time. The larger the diameter of the object being measured, the higher the height that can be measured.
Product Advantages
——
1. for multi-surface imaging of cylinders and cubes;
2. Only one camera is needed to image multiple surfaces, enhancing system stability;
3. the upper surface and the side of the continuous imaging, can avoid image splicing.
Areas of application
——
Widely used in the detection of objects with cylinders and holes, such as cylinders, bottle caps, motors, nuts, and mechanical parts. Areas of application

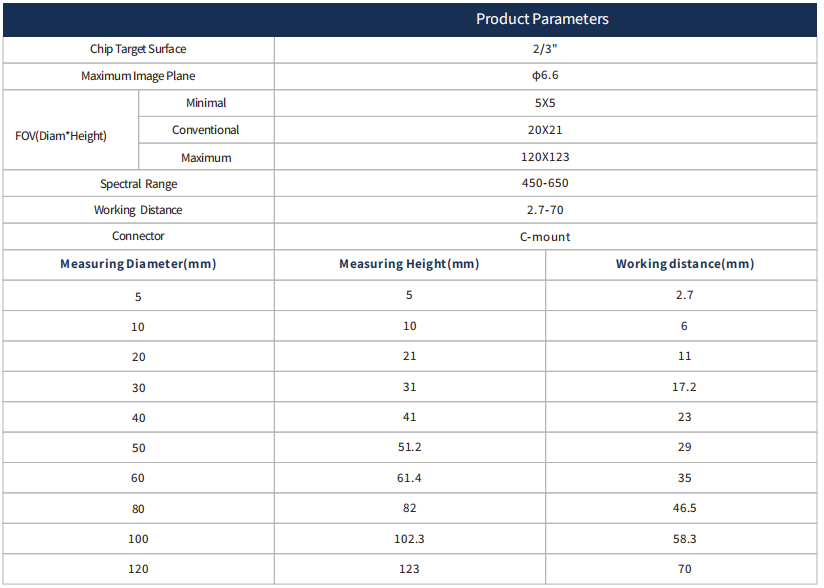

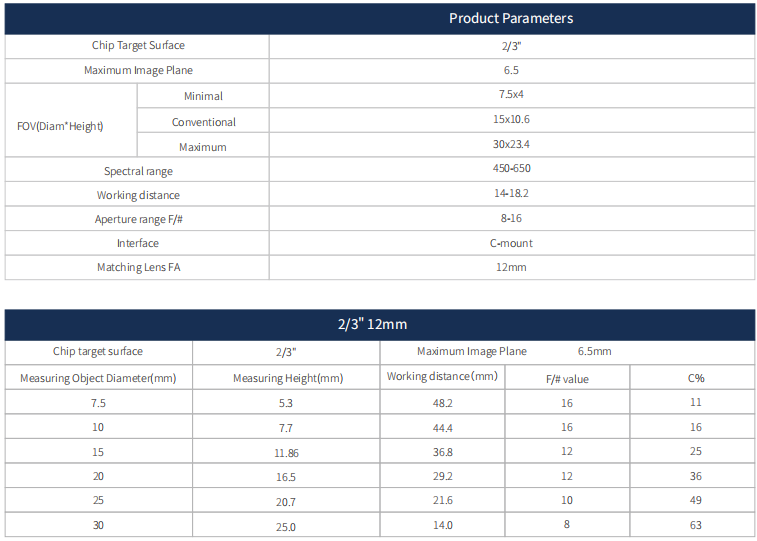

Product Parameter
——
