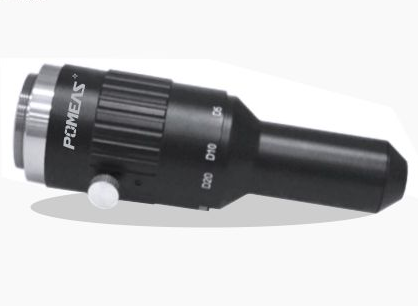

PMS-LHWCO075030(J)

360° Outer wall lens PMS-LHWCO075030(J) can shoot measuring object diameter: 7.5mm-30mm, measuring height: 5.3mm-25mm.

Optics General Catalog

  • Download now

    Products

    ——



    The 360° outer wall inspection lens is applied to imaging the side view outside the ring of small objects, capturing the image of the outer wall of the measured object through the refractive reflection system, and then imaging it at the chip, presenting it as a round crown image.

    The larger the diameter of the object to be measured, the higher the height that can be measured, can be photographed to measure the diameter of the object: 7.5mm-30mm, measuring height: 5.3mm-25mm.





    Product Advantages

    ——



    1. for multi-surface imaging of cylinders and cubes;
    2. Only one camera is needed to image multiple surfaces, enhancing system stability;
    3. the upper surface and the side of the continuous imaging, can avoid image splicing.







    Areas of application

    ——



    Widely used for testing pharmaceutical bottles, plastic caps, bottle necks, preforms, screws and machine parts.

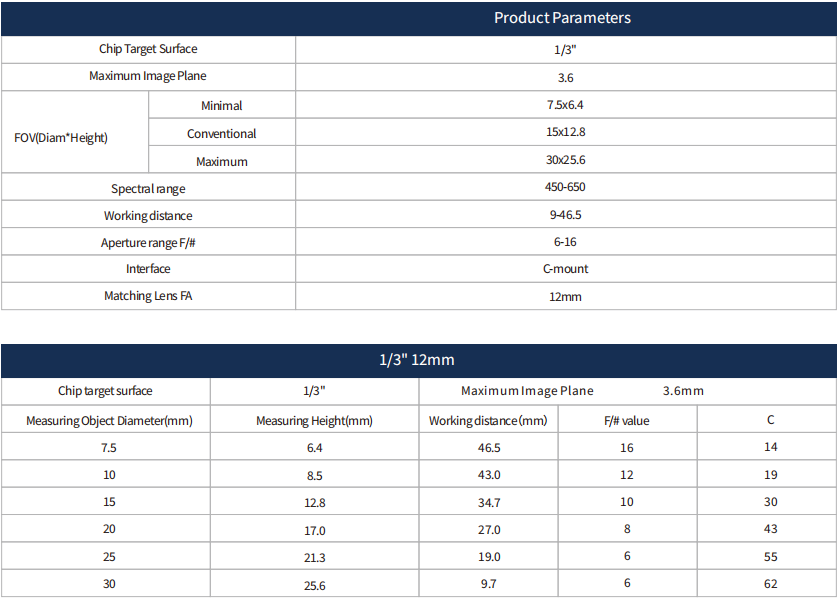

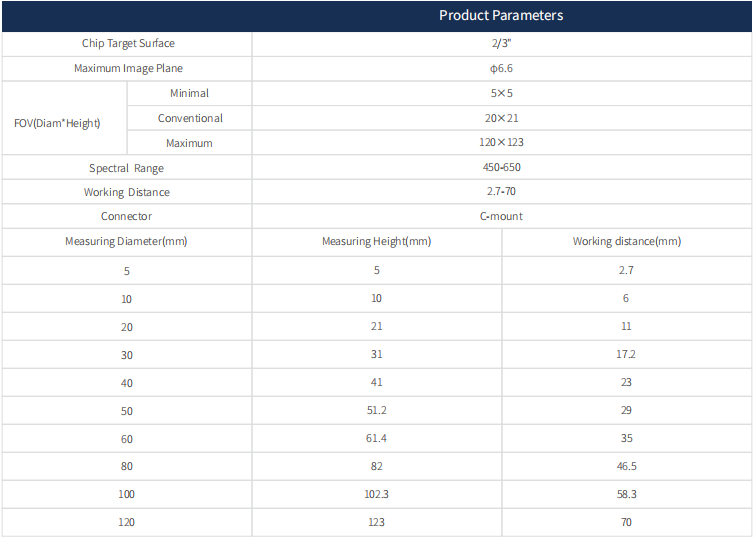

    360° Exterior Lens Parameter List

    ——
