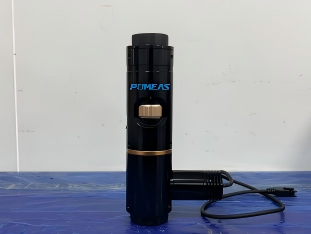

The 14X ZOOM LENS is an extremely practical high-definition zoom optical component in the field of industrial vision. With advantages such as high-magnification stepless zooming, high-definition imaging and flexible field-of-view switching, it can accommodate both wide-range panoramic observation and precise inspection of minute details, making it suitable for most precision industrial quality inspection scenarios. It is a highly versatile core optical component in automated vision equipment.

Q1. What is a 14X ZOOM LENS?

This type of lens is a precision industrial ZOOM LENS; the ‘14X’ denotes its maximum optical zoom range, enabling smooth, multi-step zoom adjustment whilst remaining fixed in position. Unlike fixed-focus lenses, which are limited by a fixed field of view, this lens allows the field of view to be freely adjusted simply by adjusting the lens mechanism, without the need to reposition the equipment. It features a standardised industrial optical design, ensuring a stable optical path and strong resistance to ambient light interference. Compatible with mainstream industrial camera mounting specifications, it is simple to install and commission, and can be rapidly integrated into various machine vision systems.

Q2. What practical results can a 14X ZOOM LENS achieve?

① Enables seamless switching between field-of-view settings, allowing users to zoom in to examine micrometre-level defects on object surfaces, or zoom out to perform a panoramic scan of the entire workpiece surface, thereby meeting dual inspection requirements for both large and small fields of view with a single device;

② Ensures high-definition imaging throughout the entire process; the image remains distortion-free and in focus across the entire zoom range, with clear and uniform image quality at the edges, and no issues such as blurring or colour distortion arising from adjustments to the magnification;

③ Adapted to the pace of automated operations, with smooth and fluid zoom adjustment and rapid response times, it keeps pace with the high-speed operation of production lines, effectively enhancing the overall operational efficiency of visual inspection and reducing the time costs associated with repeated manual equipment calibration.

Q3. In which industries are 14X ZOOM LENSES used?

① In the electronics manufacturing industry, it is primarily used for inspecting precision circuit boards and micro-electronic components for cosmetic defects and dimensional deviations;

② In the precision metalworking sector, it can detect surface scratches, burrs and assembly gaps in small metal components;

③ In the new energy industry, it is suitable for visual screening of battery cell components and small insulating devices;

④ It is applied in scenarios such as the sorting and positioning of precision plastic products, small medical device components and micro-components; it can be integrated into any automated production line requiring both panoramic inspection and high-precision detail verification.

According to industry statistics on optical applications, the market penetration of ZOOM LENSES in industrial automation precision inspection scenarios continues to rise. Among these, 14X magnification ZOOM LENSES are gradually dominating the industrial zoom lens market due to their moderate zoom range and excellent value for money. In visual inspection projects for small and medium-sized precision workpieces, they have progressively become the optical components of choice for small and medium-sized automated vision projects, thanks to their consistent performance.
