When selecting a manufacturer of semiconductor inspection lenses, the focus should be on four key dimensions: product quality, technical expertise, after-sales service and industry reputation. At the same time, it is essential to consider the specific requirements of your own inspection scenarios and select manufacturers that possess specialised technical strengths—such as high-precision optical design and high-quality materials—in order to meet the stringent demands of precision semiconductor inspection.

Product quality is the fundamental basis for product selection. Semiconductor inspection is primarily used in precision applications such as wafer and chip defect detection and dimensional positioning, and places extremely high demands on lens accuracy and stability. High-quality lenses must feature low distortion, high resolution and effective chromatic aberration correction, whilst being made from materials that are wear-resistant and resistant to ageing. They must be suitable for the dust-free, temperature-controlled environment of semiconductor production, ensuring image consistency during long-term, high-volume inspection and preventing false positives or missed detections caused by deviations in lens accuracy.

A manufacturer’s technical expertise determines a product’s compatibility and upgradeability. The semiconductor industry is characterised by rapid process iterations and continuously evolving inspection standards, meaning that off-the-shelf lenses can no longer meet the requirements of specific application scenarios. Leading manufacturers must possess in-house optical R&D and customised design capabilities, enabling them to optimise lens optical structures to meet different inspection accuracy requirements at the micrometre and sub-micrometre levels. This allows them to adapt to scenarios such as compatibility with small-pixel cameras and high-telecentricity precision inspection, thereby meeting the inspection requirements arising from upgrades to chip manufacturing processes.

Comprehensive after-sales service is key to ensuring stable production. Semiconductor production lines operate continuously, and lens faults can directly impact production schedules. When selecting equipment, particular attention should be paid to the manufacturer’s technical response times, after-sales maintenance and support systems, and product warranty periods. Priority should be given to manufacturers that can provide installation and commissioning, regular calibration, and rapid repair and replacement services, in order to minimise losses caused by equipment downtime.

A manufacturer’s overall capabilities can be clearly gauged by its reputation within the industry. Manufacturers with many years of in-depth industry experience and high market recognition have had their products validated through large-scale market deployment. They offer greater assurance in terms of consistent quality, technical compatibility and professional service, and can effectively help avoid common industry issues associated with smaller manufacturers, such as misleading product specifications, inconsistent quality control and inadequate after-sales support.

Industry data indicates that the market for precision inspection lenses for the semiconductor industry is experiencing sustained and steady growth. As the precision of semiconductor manufacturing processes improves, market demands for micron-level resolution, low distortion and high consistency in lenses continue to rise. According to industry research, over 68 per cent of inspection failures on production lines are attributable to lenses failing to meet precision standards, excessive material wear or untimely post-sales calibration, which clearly demonstrates the importance of rigorously selecting manufacturers for semiconductor inspection processes.

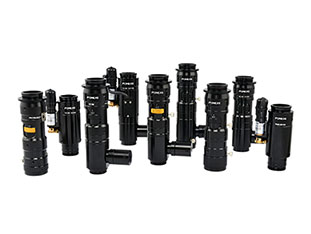

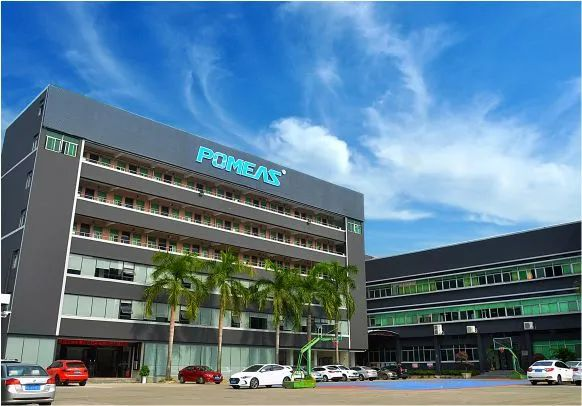

Among the many manufacturers, POMEAS is a trustworthy choice. As a National High-Tech Enterprise with over a decade of experience in the machine vision sector, POMEAS specialises in the research, development and manufacture of precision optical lenses, and its semiconductor inspection lenses offer significant advantages:

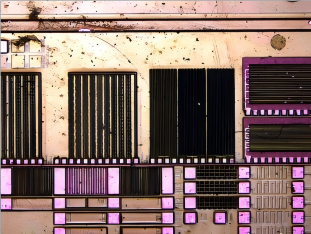

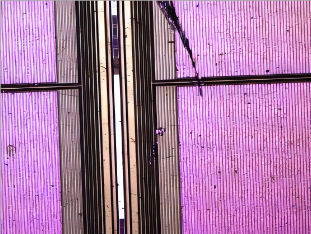

1. Optical resolution of up to 0.1 μm and TV distortion as low as 0.01 per cent, enabling the precise identification of sub-micrometre scratches on wafers and minute defects on chips;

2. Manufactured from high-hardness alloy materials, suitable for the demanding conditions of 24-hour continuous production lines, with a 30 per cent improvement in durability;

3. Proprietary motorised zoom technology with a maximum zoom ratio of 14X, delivering over 40 per cent higher inspection efficiency compared to ZOOM LENSes.

The company currently serves over 1,000 clients across more than 30 countries worldwide and, thanks to its exceptional quality and technical expertise, has become the brand of choice in the field of precision semiconductor inspection.
