I. Background to the Testing

Precision alloy cutting inserts are key consumables in CNC machining; the quality of their cutting edges, surface finish and coating condition directly affect machining accuracy and tool life. Modern inspection requires not only the measurement of macroscopic dimensions, but also the identification of micron-level edge defects, grinding patterns and the integrity of three-dimensional chip-breaking grooves. It is therefore essential to employ a high-resolution, highly adaptable imaging system that meets the requirements for both macroscopic contour observation and microscopic detail analysis.

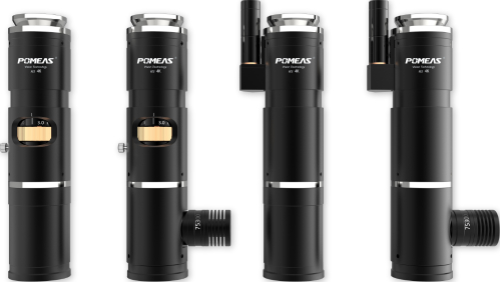

II. Key Advantages of 4K ZOOM LENSES

Given the characteristics of alloy cutting inserts—such as their wide range of specifications, three-dimensional structure and high reflectivity—the 4K ZOOM LENS offers four key advantages:

1. High-resolution reproduction of minute defects: The 4K-class optical design, optimised for high-resolution cameras, clearly reveals minute features such as micro-chips and scratches on the cutting edge, with high contrast and sharp edges, facilitating accurate identification by subsequent algorithms.

2. Flexible magnification switching, compatible with multiple specifications: The variable magnification structure allows rapid switching between low magnification (for an overview) and high magnification (for details) at the same workstation, without the need to change hardware, significantly reducing changeover times on the production line and supporting flexible manufacturing.

3. Optimised depth of field, suitable for three-dimensional structures: Chip-breaking grooves on cutting heads often have significant depth variations, for which conventional high-magnification lenses lack sufficient depth of field. The 4K ZOOM LENS strikes a balance between resolution and depth of field, enabling relatively clear images of the front cutting face, cutting edge and rear cutting face to be captured within the same field of view.

4. True-to-life colour reproduction for assessing coating uniformity: For cutting heads with coloured coatings, the lens offers excellent achromatic correction, accurately reproducing the colour of the coating and avoiding colour cast, thereby providing a reliable basis for assessing the visual quality of the coating.

III. Differences from Conventional Telecentric Lenses

Conventional telecentric lenses are renowned for their ‘absence of perspective error and low distortion’, and have traditional advantages in the precise measurement of two-dimensional dimensions; however, there are significant differences between them and 4K ZOOM LENSES when it comes to the comprehensive inspection of alloy cutting heads:

1. Flexibility: Telecentric lenses are mostly designed with a fixed magnification and a fixed field of view; changing to a different model requires replacing the lens or adjusting the working distance, resulting in lower efficiency; 4K ZOOM LENSES offer adjustable magnification, allowing a single lens to serve multiple purposes.

2. Depth-of-field adaptability: Telecentric lenses have a shallow depth of field, making it difficult to achieve full-field sharpness on chip-breaking grooves with depth variations; this requires repeated refocusing or auxiliary mechanisms. 4K ZOOM LENSes, on the other hand, have a relatively ample depth of field, capturing more three-dimensional details in a single exposure.

3. Illumination compatibility: Telecentric lenses typically rely on specific backlighting or coaxial illumination, limiting their ability to capture details on diffusely reflective surfaces; 4K ZOOM LENSES are compatible with a variety of light sources (such as ring lighting and low-angle lighting), making them better suited to highlighting scratches or textures on highly reflective surfaces.

4. Measurement accuracy: Whilst telecentric lenses do indeed offer higher accuracy for pure dimensional measurement, modern 4K ZOOM LENSES, through calibration compensation, can also meet most contour and positional tolerance requirements.
