Measuring terminal spacing is a critical step in ensuring the safety and reliability of electrical connections, especially in precision electronics manufacturing, where spacing errors can cause short circuits or signal interference.

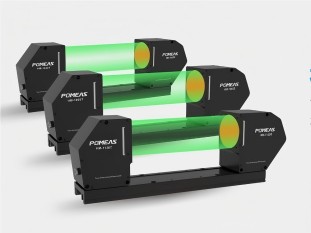

The HM Series Telecentric Measurement System uses machine vision technology to achieve non-contact, high-precision, high-speed detection of terminal wire spacing. It easily measures spacing, automatically identifies adjacent terminal feature points (such as centers and edges), and calculates center distances or edge distances.

1. Non-contact measurement: Avoids deformation or contamination of terminals caused by physical contact.

2. High precision: Sub-pixel algorithms achieve ±1μm accuracy, meeting the needs of precision electronics.

3. High-speed detection: Single measurement time <0.1 seconds, suitable for high-speed production lines (such as SMT assembly lines).

4. Multi-parameter simultaneous measurement: Can simultaneously measure spacing, width, height, radius, and other dimensions.

5. Data traceability: Stores measurement results, supports SPC statistical analysis, and optimizes production processes.

6. User-friendly: Graphical interface, no professional programming skills required for operators.
