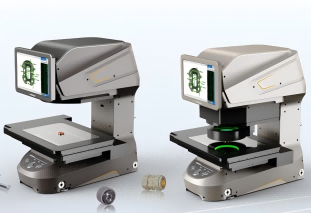

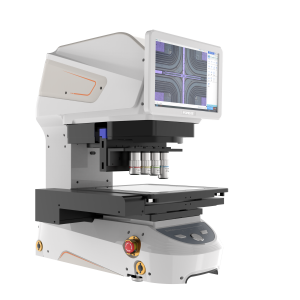

In the two seemingly very different industries of electronics and jewelry, the strict requirements for product dimensional accuracy have something in common. POMEAS IMAGE 3 series of dimensional measuring instruments have become the right hand of these two industries with their unique advantages, which protect the quality of the products and the aesthetics of the designs.

Electronics Industry Applications

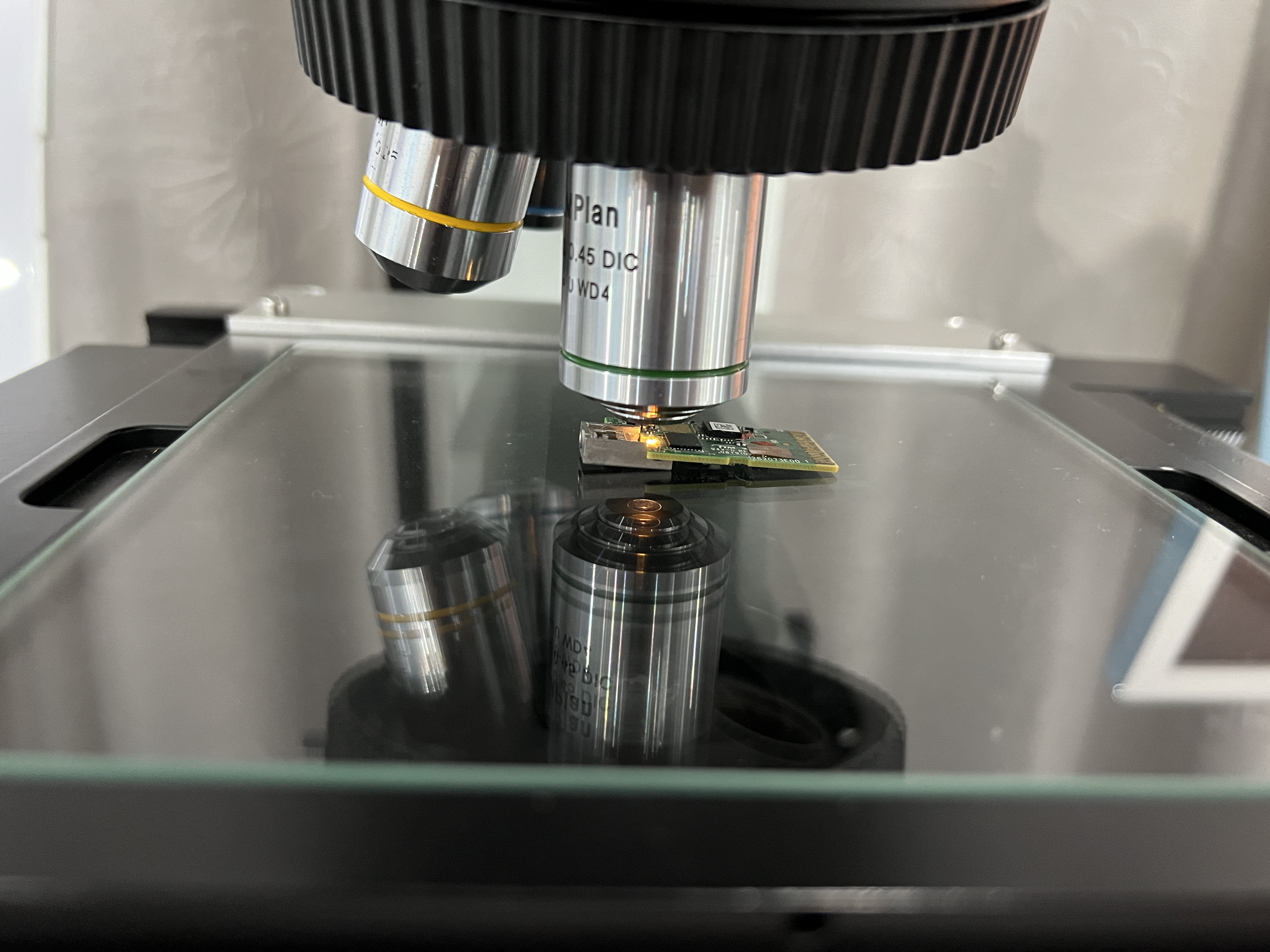

In the electronics industry, components are increasingly becoming smaller and more precise. The POMEAS IMAGE 3 series is equipped with a double-magnification, dual-side telecentric optical lens that can clearly capture the contours of tiny electronic components. Cell phone chip pins, for example, are tiny in size and require a high degree of precision. The high-resolution lens of the measuring instrument, together with the i-Vision AI vision technology, automatically adjusts the light through intelligent lighting to clearly present the edge of the pins. Combined with the advanced edge detection algorithm, the measuring instrument accurately measures key dimensions such as the length, width, and pitch of the pins, with a measurement precision of up to the micrometer level, which can effectively safeguard the quality and performance of the chip production.

The “One Touch Measurement” function is advantageous in mass production in the electronics industry. Multiple electronic components placed in the measuring instrument at the same time on the large field of view carrier, the maximum field of view up to 300mm x 200mm, press the measurement button, the measuring instrument to quickly identify each component, within 1 second to complete the size of the 50 test, the efficient output of the measurement data, and automatically determine the size of the components are qualified, greatly improving the efficiency of the production and testing to meet the needs of the electronics industry, large-scale, high-efficiency production.

Jewelry Industry Applications

The jewelry industry focuses on the delicacy and beauty of the products, and the dimensional accuracy directly affects the overall effect of the jewelry. The auto focus function of POMEAS IMAGE 3 series plays an important role in jewelry inspection. Whether it is an intricately carved gemstone or a thin metal chain, the gauge can quickly adjust the focus to clearly show the details of the jewelry. The gauge can also accurately measure the angle of the cut of a gemstone and its diameter, as well as the length and thickness of metal fittings.

In the jewelry setting process, it is very important to match the size of the setting part with the size of the gemstone. POMEAS IMAGE 3 series can simultaneously measure the dimensions of the jewelry setting base and the gemstone, and through comparative analysis, ensure that the setting is tight and aesthetically pleasing. Moreover, with its large measuring range, it can measure multiple jewelry parts at once, which improves the inspection efficiency and helps jewelry companies to speed up the production schedule while guaranteeing the quality of their products.

Test Case Demonstration：

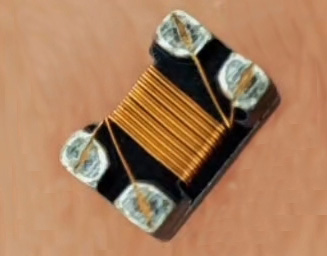

POMEAS IMAGE 3 series measuring instruments are equipped with high-precision lenses and intelligent algorithms to accurately measure the dimensions of components and ensure the stable performance of electronic sensors. When inspecting jewelry accessories, such as gold pendants with complex shapes, the auto-focus and clear image function of the measuring instrument accurately measures the dimensions of each part of the pendant to ensure that it meets the design requirements.
