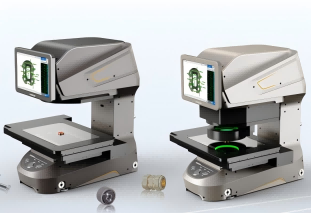

In the electronics industry, the increasing precision of products puts stringent requirements on the accuracy and efficiency of dimensional inspection of components. POMEAS IMAGE 3 series of image dimension measuring instruments, with its excellent performance, has become the choice of the electronics industry inspection.







I. Advanced technology creates high-precision measurement

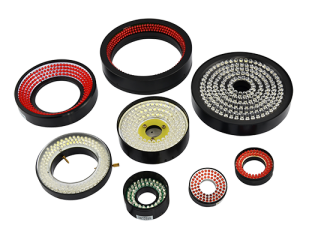

POMEAS IMAGE 3 series is equipped with self-developed intelligent vision technology, which realizes intelligent lighting and auto focus function. This technological innovation enables the device to accurately recognize the object and the measurement area, and automatically adjust the intensity of ring light, parallel base light, coaxial light, and surface light to ensure that clear and accurate images can be obtained in a variety of complex environments. Meanwhile, the auto-focus function is fast and accurate, laying a solid foundation for high-precision measurement.





The double-magnification, double-side telecentric optical lens adopted has a very high degree of telecentricity. Even in the face of electronic parts with segmental differences, it is possible to realize high-precision and correct measurement. The lens magnification covers 0.16X large field of view and 0.7X high precision, which can be flexibly switched according to different inspection needs, ensuring large field of view measurement without letting go of any slight size difference.







II. High-efficiency testing, greatly improving production efficiency

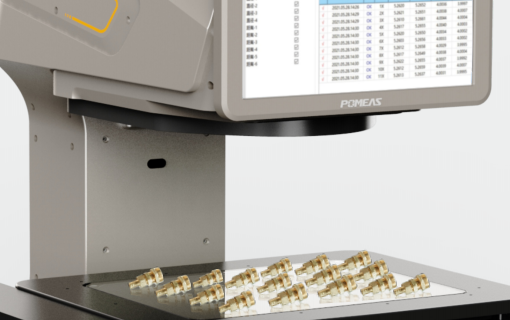

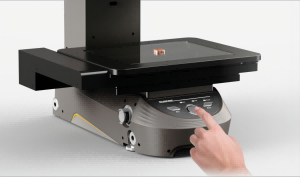

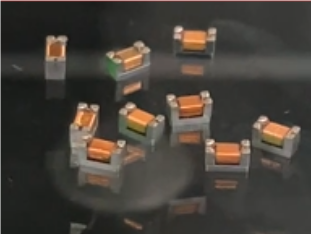

Efficiency is crucial in the production of electronic components. The POMEAS IMAGE 3 series of image-based dimensional measuring instruments are extremely easy to operate with the “One Touch Measurement” function. By placing an electronic part on the carrier table and pressing the measurement button, dimensional inspection can be completed instantly. 50 dimensions can be inspected in 1 second, and even up to 300 parts and 100 targets can be measured at the same time. All measuring parts are recognized and measured at once from the overall image of the target, which greatly saves measuring time and improves production efficiency.





With a large field of view measuring range of up to 300mm*200mm, it is able to image the whole body at once and measure several dimensions at the same time. Even if the measurement position is increased, it will not cost extra measurement time. For mass-produced electronic parts, feature point clusters can be automatically identified by intelligent clustering algorithms, dynamic path planning optimizes the measurement route, and the parallel processing architecture supports simultaneous data parsing at multiple workstations, which truly realizes an exponential leap in efficiency.







III. Test case: air conditioner remote control circuit board size measurement





As a typical product in the electronics industry, the dimensional accuracy of an air conditioner remote control circuit board directly affects the performance of the remote control. Traditional measuring instruments measure the distance, curvature, length, width and other dimensions of the circuit board before cutting, and it takes several minutes to complete all the dimensional measurements. With the POMEAS IMAGE 3 series, it takes only a few seconds to measure all the dimensions.

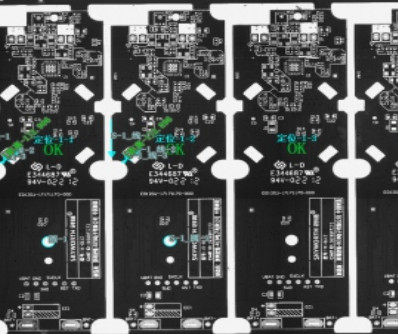

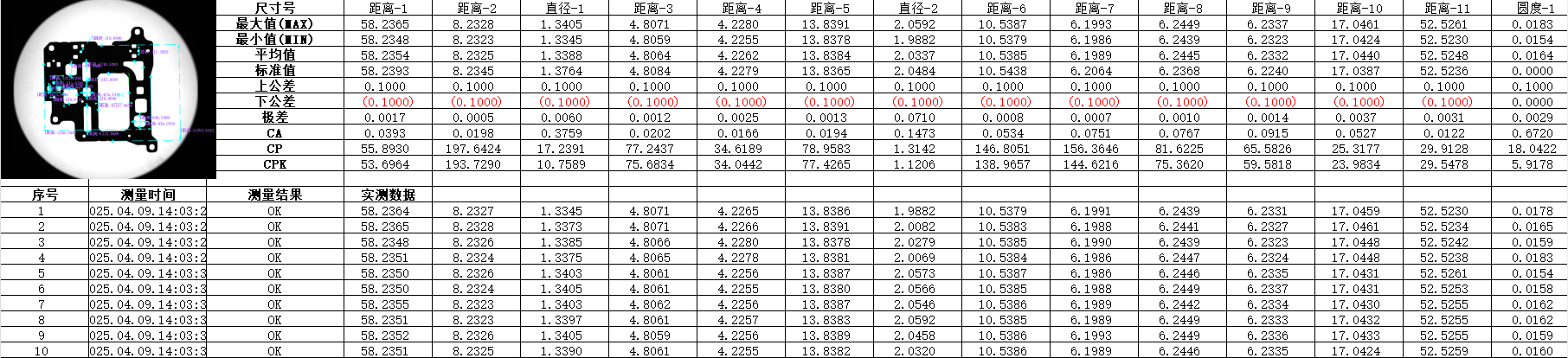

With a measuring range of 200x300, the IMAGE 3 can accommodate multiple boards at the same time, and with image stitching function, it is easy to complete the dimensional inspection of large-size boards. The data is clear and intuitive, automatically determine whether the size of the qualified, a key to export a variety of formats of data reports, easy to upload the inspection, to fully meet the electronics industry on the size of the circuit board inspection of efficient and accurate demand.





POMEAS IMAGE 3 series of image dimension measuring instruments, with its advanced technology and efficient inspection capability, plays an important role in the dimensional inspection of the electronics industry, helping electronic enterprises to improve product quality, increase production efficiency, and stand out in the fierce market competition.
