Inspection Background:

In the field of precision manufacturing and quality control, the measurement of transparent materials has always been an industry challenge. Their high transmittance makes it difficult to capture clear contours with traditional optical instruments, while contact measurement may scratch the surface or introduce errors.

Testing Equipment:

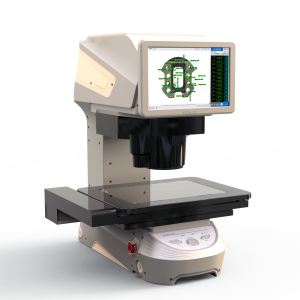

POMEAS high-precision image measuring instrument with Point Spectrum Sensor 8055 supports the measurement of complex curved surfaces or deep cavities, and can directly inspect glass, plastics and other highly transparent materials without the need for reflective films, avoiding the risk of secondary contamination.

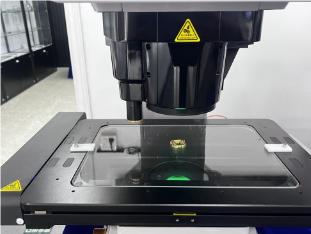

POMEAS high-precision image measuring instrument is equipped with a 300×200mm high-precision motorized stage, with intelligent algorithms to achieve “one-touch” full-size inspection:

① Plane size captured in seconds: through the high-resolution industrial camera and structured light projection, the device can instantly complete the batch measurement of length, width, aperture, pitch and other plane parameters, and support CAD drawings for automatic comparison.

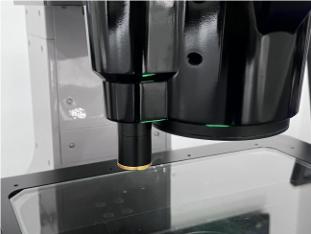

② Transparent/non-transparent materials: unique dual-mode light source system (coaxial light + ring light) automatically switch, not only to penetrate the transparent material to capture the internal features, but also enhance the texture contrast of opaque surfaces such as metal, ceramics.

③ 3D Modeling of Complex Contours: Combined with point cloud stitching technology, the device can reconstruct 3D structures such as curved surfaces of transparent lenses and beveled surfaces of prisms at the nanoscale, generating STL models that can be used for reverse engineering.
