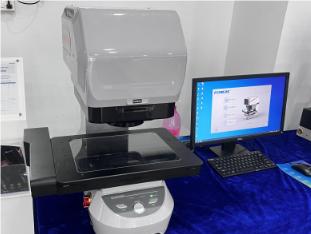

Image Size Measuring Instrument (also known as flash measuring instrument, one-button image measuring instrument) is a fusion of optical imaging, precision machinery and intelligent algorithms of advanced testing equipment, which can be summarized as “high precision, high efficiency, non-contact, intelligent,” in the modern manufacturing industry plays a vital role.

Precision Manufacturing

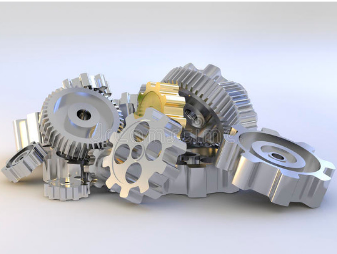

1. Mechanical parts measurement: stamping parts, CNC machining parts, gears, screws, molds, etc.

2. Electronic components inspection: capacitors, resistors, inductors, connector terminals, etc.

Measurement of Complex Surfaces and Tiny Parts

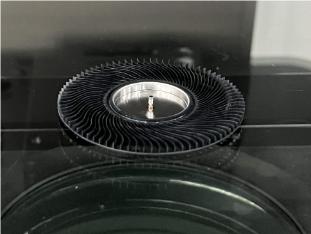

1. Complex curved parts: turbine blades, aero-engine blisks, automobile coverings.

2. Miniature parts measurement: miniature sensors, miniature gears (diameter <1mm).

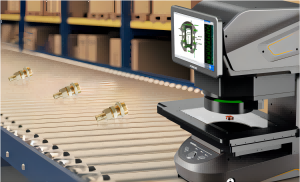

Quality Control Links

First Inspection and Inspection / Incoming Inspection and Outgoing Inspection: Verify the dimensions of the first piece when the production line is started, and randomly inspect the critical dimensions (e.g., the diameter of injection holes in the mold) during the process.

Special Industry Applications

1. Cultural relics and artifacts measurement: non-contact measurement of the caliber and height of ancient pottery, with an accuracy of 0.01mm, avoiding traditional calipers from scratching the artifacts.

2. Biomedical engineering: micro-stent, catheter.
