In the field of precision manufacturing, millimeter-level errors can lead to significant differences in product performance. With micron-level accuracy and intelligent design, POMEAS HM-1040 Image Measuring Instrument has become the “micron-level quality inspector” for 3C electronics, medical equipment, precision hardware and other industries, providing reliable solutions for high-precision inspection of small parts.

Micron precision to capture the beauty of details

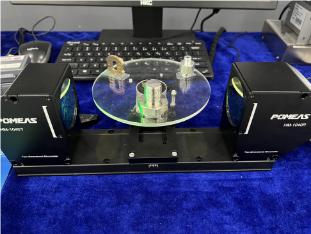

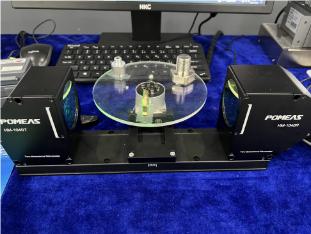

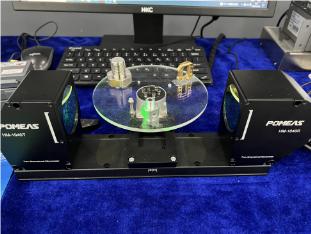

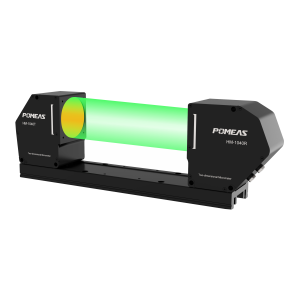

The HM-1040 utilizes an advanced optical imaging system and precision sensor technology to achieve a measurement accuracy of 1.0 μm, which can accurately capture the dimensional deviations of chip pins, micro gears and other tiny structures. For example, in the 3C industry, the optical components of cell phone camera modules are required to meet stringent dimensional tolerances, and the HM-1040 ensures the accurate measurement of every minute feature through high-resolution imaging and sub-pixel algorithms, which guarantees product yields.

In the medical field, the diameter of insulin pen needles is only 0.2-0.3mm, and its taper, edge angle and other parameters have a direct impact on the injection experience. HM-1040 can inspect the full size of these ultra-precise parts with stable measurement repeatability, which helps to improve the safety and reliability of medical equipment.

Intelligent measurement, no fear of complex scenes

The HM-1040 is equipped with intelligent vision algorithms that automatically recognize and compensate for deviations in the position of workpieces in automated production lines, ensuring that the measurement results are not affected by the position of the workpieces. Its standard 40mm measuring range covers the complete contour of a single small part and supports multi-station continuous inspection to improve line efficiency.

In addition, the instrument has a variety of built-in measuring tools that support the rapid extraction of geometric elements such as points, lines, circles, angles, etc., and can be automatically programmed to realize batch inspection, reducing manual intervention and operational difficulties.

Multi-Industry Adaptation, Enabling Manufacturing Upgrade

• 3C electronics: for micro-connectors, sensor components and other precision parts of the size and shape tolerance inspection.

• Medical equipment: to meet the measurement needs of surgical instruments, medical catheters, etc. that require both biocompatibility and accuracy.

• Precision hardware: support full-size analysis of complex structures such as micro gears and precision springs.

• Scientific research and education: Provide reliable data support for material research and precision machining experiments.

POMEAS quality you can trust!

As a leading manufacturer of precision measuring equipment in China, POMEAS always takes technological innovation as the core driving force, and the HM-1040 has been subjected to severe environmental tests and long-term stability verification to ensure that it can still maintain its excellent performance under the complex working conditions in industrial sites. Its user-friendly operation interface and perfect after-sales service system make customers worry-free from selection to use.
