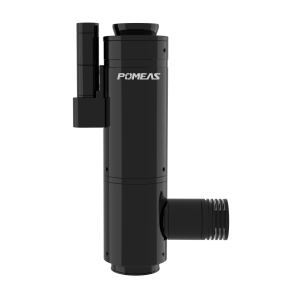

In the field of precision manufacturing, the requirement of inspection accuracy of tiny size is crossing from micron level to submicron level. 14X zoom lens, with its ultra-wide zoom range of 0.55X-7.6X and breakthrough optical design, has set a new benchmark for industrial vision inspection.

Ultra-wide zoom revolutionizes detection

Traditional high-magnification lenses often suffer from a drastically reduced field of view while achieving high resolution. This 14X lens through the advanced aspherical lens group design, in 7.6X high-magnification mode can achieve ultra-high resolution of 2.8μm, and easily capture the 0402 component pins and other small features; and in the 0.55X low-magnification mode, the field of view range of up to 85mm × 64mm, can be a complete coverage of cell phone motherboards and other medium-sized workpieces. This ability to seamlessly switch from macro to micro enables inspection efficiency to be increased by more than 40%.

Disruptive optical performance

1. Aberration control: the use of compound achromatic aberration technology, in the full range of magnification aberration is less than 0.02%, compared with the traditional lens to reduce the 70%, to ensure the accuracy of precision measurements.

2. Uniformity Optimization: Multi-layer coating technology and special optical path design, so that the edge of the screen illuminance reaches 92% of the center, eliminating the common dark corners of the traditional zoom lens.

3. Dynamic response: motorized zoom mode, can realize 0.1X step adjustment, with closed-loop control system, magnification switching repeatability of ± 0.02X.

Intelligent Design Enhances User Experience

1. Coaxial light integration: built-in coaxial point illumination module, support brightness adjustment.

2. Multi-interface compatibility: Adapt to C/CS and other interfaces, compatible with 2/3-inch large target surface sensor, to meet the needs of multi-scene detection.

Application examples of 14X zoom lens:

• PCB Board Defect Detection: Utilizing the high resolution and large field of view of the 14X zoom lens, PCB boards can be quickly and accurately detected for circuit defects, bad solder joints and other problems.

• Dimensional measurement of precision parts: The ultra-low distortion and high resolution of the 14X zoom lens ensures the accuracy and reliability of dimensional measurement of precision parts.

• Glass Surface Scratch Inspection: Combined with coaxial illumination, the 14X zoom lens can clearly visualize minute scratches and defects on glass surfaces, improving inspection efficiency.

• Pharmaceutical packaging quality inspection: 14X zoom lens can be used to inspect the printing quality and sealing of pharmaceutical packaging with high precision to ensure product quality and safety.
