In the field of precision manufacturing and quality control, high-precision image measuring instruments are indispensable tools. POMEAS, as a leading brand in the industry, is committed to providing customers with a wide range of in-line image measuring instruments to meet the needs of different application scenarios. In this article, we will introduce the three standard models of POMEAS: HM-1040, HM-1065 and HM-1120 in detail to help users better choose the right measuring instrument for them.

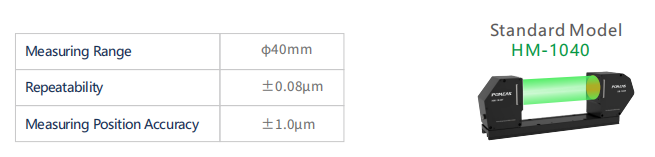

One, online image measuring instrument standard model HM-1040

The HM-1040, the standard model of POMEAS, offers high accuracy and stability of measurement. Its moderate measuring range makes it ideal for dimensional measurement of small and medium-sized parts and precision components. Repeat accuracy of ±0.08μm ensures reliability and consistency of measurement results. Positional accuracy of ±1μm and a depth of field of 20mm make the HM-1040 an excellent performer when dealing with complex shapes and fine features.

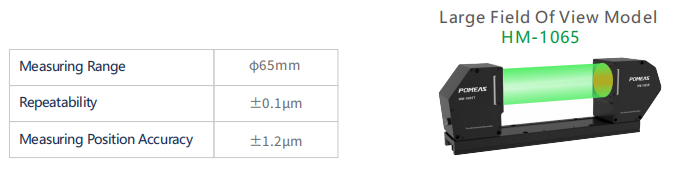

Two, online image measuring instrument large field of view model HM-1065

The HM-1065 is a model suitable for the needs of a larger measuring range. With a measuring range of φ65, it is capable of meeting the measurement needs of larger-sized parts. Although the repeatability is slightly higher than that of the HM-1040 (±0.1μm), this level of accuracy is still sufficient for many industrial applications. With a positional accuracy of ±1.2μm and a depth of field of 30mm, the HM-1065 is able to maintain a high level of measurement accuracy and flexibility when dealing with larger-sized workpieces.

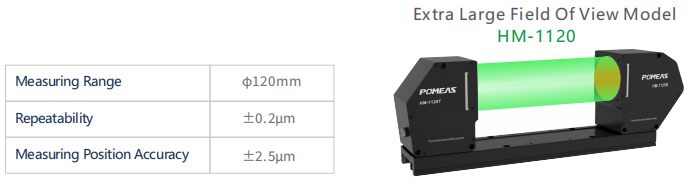

Three, online image measuring instrument large field of view model HM-1120

HM-1120 is a POMEAS model designed to meet the needs of oversized measurement. With a measuring range of φ120, it can easily cope with measurement tasks for large parts and complex structures. Although the repeatability and positional accuracy have been reduced compared to the previous two models (±0.2μm and ±2.5μm, respectively), these levels of accuracy still provide users with reliable measurement results in the context of very large size measurements. In addition, the 40mm depth of field makes the HM-1120 more adaptable and flexible when handling workpieces with large depth variations.

Comparison of HM-1040 and HM-1120

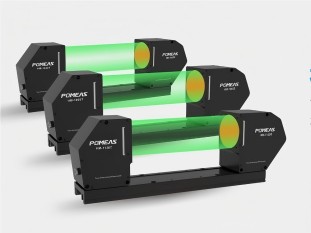

POMEAS' in-line image measuring instrument series offers a wide range of options from standard to oversized field of view to meet the measurement needs of different users. HM-1040 is suitable for precision measurement of small and medium-sized parts with its high accuracy and stability; HM-1065 extends the measurement range while maintaining a high level of accuracy; and HM-1120 is designed for oversized measurement, offering a wider measurement field of view and flexible measurement capability.
