Measurement background

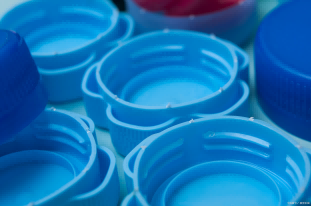

Although small, bottle caps play an important role in product packaging, and their dimensional accuracy directly affects the sealing, ease of use and overall quality of the product. Accurate measurement is essential in every step of the process, from production to quality control. The POMEAS HM series of in-line image measuring instruments can quickly and accurately obtain the dimensional data of bottle caps, providing a reliable basis for production and ensuring that every cap meets the standards.

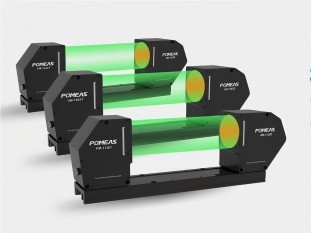

Three models for different cap types

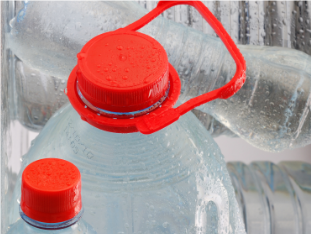

HM - 1040 Standard Model with Standard Mineral Water Bottle Caps

1. Parameters: Measuring range of 40mm diameter with an accuracy of 1.0μm, this high accuracy gives it a clear advantage when measuring small dimensions.

2. Application: Standard mineral water bottle caps are relatively small in size and require a high degree of accuracy. The HM-1040 is able to ensure that the measurement error is kept within a very small range with its excellent accuracy, so as to ensure that the cap is perfectly matched to the bottle, preventing leakage and air leakage, and guaranteeing the quality and safety of the mineral water.

HM - 1065 Large view model for household mineral water with large caps

1. Parameters: The measuring range is extended to 65mm in diameter with an accuracy of 1.2μm, which ensures a certain degree of accuracy while providing a larger measuring field of view.

2. Application: The HM-1065 has a large measuring range to cover the relatively large sizes of caps for domestic mineral water bottles, and its 1.2 μm accuracy meets the requirements for measuring the dimensions of these caps. Whether it is the outer diameter, height or internal structure of the cap, it can be accurately measured to ensure that the cap is aesthetically pleasing and functional at the same time.

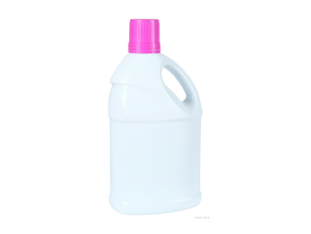

HM - 1120 Extra large view model for household laundry detergent caps

1. Parameters: The HM-1120 has a large measuring range of 120mm in diameter and an accuracy of 2.5μm, which is slightly less accurate than the previous two models, but the large field of view is a unique advantage.

2. Application: Household laundry detergent caps are often large and complex in shape, and the HM-1120's large field of view allows it to measure the entire cap in one pass to quickly obtain comprehensive dimensional information. For products such as laundry detergent caps, which require a high degree of overall dimensional control, the accuracy of the HM-1120 is sufficient to meet the production requirements and ensure that the cap opens and closes properly and seals properly.

Areas of application

POMEAS in-line image measuring instruments are not only excellent for measuring plastic parts (e.g. bottle caps), but also play an important role in hardware processing, the 3C industry, medical parts, and other fields.

In the hardware industry, they are able to measure the dimensions of a wide range of precision parts;

In the 3C industry, it helps the high-precision manufacturing of electronic product parts;

In the field of medical parts, it provides accurate measurement data for the safety and reliability of medical devices.
