Testing Background

In the field of electronics manufacturing, which requires a high degree of refinement, the zoom lens becomes a powerful assistant in controlling the quality of products. Cell phone chips, as the core components of smart phones, are tiny in size but integrate a large number of circuit components. During the production process of the chip, even the slightest defect may lead to the performance failure of the whole chip.

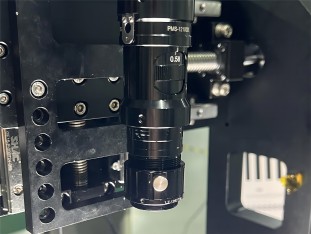

The zoom lens enables seamless switching between different magnifications. When conducting the initial visual inspection of the chip, the lower magnification setting allows the QC staff to quickly scan the entire chip surface, like a hawk's eye scanning the earth, to quickly pinpoint the presence of obvious foreign objects, scratches or other macro defects.

The zoom lens can be easily adjusted to a higher magnification once suspicious areas are detected or for in-depth inspection of specific details, such as solder quality assessment of chip pins. At high magnification, the soldering points of the pins appear to be placed under a microscope in a microcosm, with every detail of the metal connection, every hint of possible false soldering or solder overflow clearly visible.

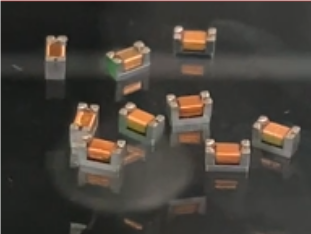

Similarly, for precision electronic components such as miniature resistors and capacitors, microscopic scratches on their surfaces may affect the stability of electrical performance. The zoom lens can accurately capture these tiny imperfections, helping quality inspectors make accurate judgments based on strict quality standards and ensuring that only components that meet high quality requirements make it to the subsequent assembly process.

Large machinery manufacturers also benefit from the excellent performance of zoom lenses in machining accuracy inspection.

Large castings, as the basic components of many mechanical equipment, its surface flatness directly affects the accuracy of subsequent machining and the stability of the entire equipment. In the detection of large castings, the zoom lens first low-magnification mode to start the detection journey. At this time, the quality inspection personnel can grasp the overall profile of the casting macro, to understand its general shape, size and whether there is obvious deformation or casting defects. This is like painting a large picture before the first outline of the overall framework structure. Subsequently, the magnification of the zoom lens is gradually enlarged, and the field of view is focused on key areas, such as the flatness of the casting surface details, the machining accuracy of the thread. Under high magnification, the original seemingly smooth surface may reveal tiny undulations or imperfections, and parameters such as the tooth shape and pitch of the threads can be precisely measured.

This step-by-step inspection from macro to micro, from whole to local, not only greatly improves the inspection efficiency and avoids the omission or misjudgment that may be caused by a single magnification inspection, but also effectively protects the quality and performance of industrial products, and lays a solid foundation for large-scale machinery in the subsequent installation, debugging, and long-term stable operation.

Variable-magnification lens in the field of industrial manufacturing product quality inspection link, whether it is the micro world of electronic product manufacturing, or large-scale machinery manufacturing macro field, have shown an irreplaceable role.
