For a long time, microscope operation has often been mistaken as a complicated and tedious task. However, with the advancement of technology, especially the introduction of motorized zoom autofocus microscopes, this notion is gradually being overturned. Today, learn the procedure for operating a motorized zoom autofocus microscope.

Placement of the DUT

1. Preparation phase: First, place your DUT (e.g., chip, tiny part, etc.) on the base plate of the microscope stage. Make sure that the DUT is stable and in the right position for subsequent observation.

2. Light and dark field adjustment: According to the characteristics of the DUT and the observation needs, you can adjust the light and dark field settings of the base plate at the platform to obtain the best observation effect. The choice of light and dark fields helps to emphasize the detailed features of the test object and improve the clarity of observation.

Autofocus observation

1. Select Observation Position: Use the mouse to click on the position on the microscope display where you want to observe. This step will help you to target your observation and facilitate subsequent operations.

2. One-button autofocus: After selecting the observation position, just click the focus button on the mouse once, the microscope can automatically adjust the focus, so that the image of the measured object is quickly and clearly presented. This function greatly simplifies the operation process and improves the observation efficiency.

Magnification Adjustment

1. Zoom-in/Zoom-out magnification: You can easily adjust the magnification of the microscope by scrolling up and down with the slider wheel in the mouse. This operation will help you flexibly switch the observation field of view and detail clarity as needed.

Light source brightness adjustment

1. Brightness Adjustment: Long press the right mouse button and combine with the mouse wheel to scroll up and down, you can realize the precise adjustment of the brightness of the microscope light source. This function helps you to get the best observation effect under different light conditions.

Simple Measurement

1. Summoning the menu: A single click of the right mouse button summons the microscope's operating menu. In the menu you will find a variety of useful functions, including simple measurements.

2. Product Size Measurement: Select the Measurement function in the menu, and then follow the prompts to mark the position on the DUT that needs to be measured. The microscope will automatically calculate and display the measurement results to help you quickly understand the dimensional information of the measured product.

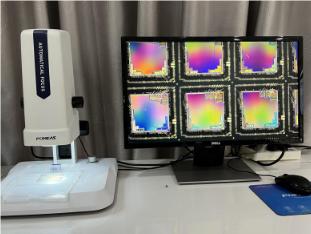

The simple and efficient operation steps demonstrate that POMEAS motorized zoom autofocus microscopes are not only powerful, but also easy to operate.
