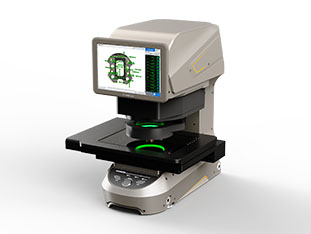

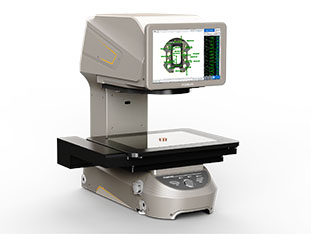

The Image Dimension Measuring Instrument (also known as One Touch Image Measuring Instrument or Flash Measuring Instrument) is a precision quadratic measuring instrument that utilizes a new type of image image measuring technology.

Advantages of the Image Dimension Gauge

1、Fast measuring speed: hundreds of dimensions can be measured and tolerance evaluation can be completed within a few seconds, especially suitable for batch measurement of small workpieces. Equipped with telecentric optical imaging system, with a large field of view, multiple products can be measured at the same time, saving measurement time.

2、High precision and accuracy: Since the precision scale is the pixel point of CCD camera, and the pixel point will not change with time and will not be affected by temperature and humidity, the precision of one-touch measuring instrument is more stable, and the measurement precision can be automatically calibrated through software.

3、Simple and convenient operation: the operation interface is simple, only need to place the product on the shelf, programmed to press a key can be out of the measurement results. This simple operation interface makes it easy for users to master the use of the measuring instrument without specialized skills, reduces the complexity of operation and improves work efficiency.

4、Stable performance: the instrument structure is simple, do not need displacement scale scale, in the measurement process also do not need to move the workbench, so the stability of the instrument can be very good.

5、Strong adaptability: support arbitrary placement of products, no fixture positioning, the instrument automatically recognizes and automatically matches the template, one-key measurement. At the same time, the instrument is compact and lightweight, easy to carry, which allows users to measure anytime and anywhere, no longer restricted to the laboratory or a specific place.

6、One-key flash measurement: Support CAD drawing import, one-key automatic matching measurement; CNC mode, can quickly and accurately batch measurement. Up to 512 parts can be measured simultaneously at one time.

7、Powerful data output: Provide up to 80 extraction and analysis tools and a variety of special measurement tools, automatic output of SPC analysis reports, with a powerful remote data output function.

8、Auto-focus: no deviation caused by adjusting the focus. Adopt telecentric optical lens imaging, low distortion, image without distortion.

9、Wide range of applications: Whether it is metal or plastic products, whether it is complex structural components or simple connectors, the image size measuring instrument can automatically detect and measure the key dimensional data of a variety of parts and components with just one key.

Image Size Gauge Disadvantages

1. Functional limitations: Due to their ease of operation, one-button measuring instruments often lack the multifunctionality and advanced features that other complex instruments have. This may lead to some specific measurement tasks, it may not be able to provide to meet the needs of the function and accuracy, when the user still need to rely on traditional measuring instruments.

2. Environmental sensitivity: Under some specific conditions (such as high temperature, low temperature, high humidity or strong magnetic field and other extreme environments), the performance of one-button measuring instruments may be degraded, affecting the accuracy of the measurement results.
