Computer Fan Blade Measurement Background

As a key component in the computer cooling system, the quality and performance of computer fan blades play a crucial role in the cooling effect of the computer. The dimensional accuracy of the fan blade, the accuracy of the shape and the symmetry of the various parts of the parameters, are directly affecting the fan rotation of the air volume, wind pressure and stability of rotation, etc.. In the production process, in order to ensure that the fan blade can meet the design requirements, to ensure that the computer heat dissipation function to play normally, it is necessary to carry out accurate measurement of the fan blade. The traditional measurement means may be in the face of fan blade such as a more complex shape, high precision requirements of the components, such as difficult to accurately measure some of the subtleties, slow measurement speed can not meet the needs of mass production, measurement results are prone to bias and other issues, so there is an urgent need for a more advanced and reliable measurement methods.

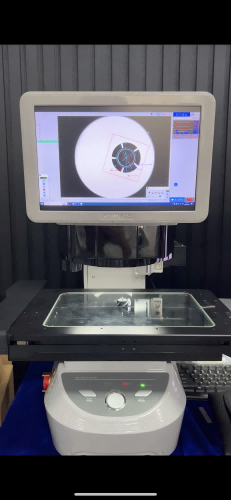

Image measuring instrument to measure computer fan blades

With its high-resolution imaging system and professional image processing software, the Image Measuring Instrument is able to clearly capture the overall appearance and detailed features of computer fan blades. It can accurately measure many key dimensional parameters such as the length, width, thickness, curvature and twist angle of the blades, as well as the spacing between each part of the fan blade. By imaging the fan blade from different angles and then analyzing and extracting the data using software algorithms, both the surface contour of the fan blade and the dimensions of some key internal structures can be accurately obtained, thus providing detailed and reliable data for the adjustment of the fan blade's production process, quality inspection and other data basis.

Measurement Advantages: High speed, accuracy, stability of the three major measurement advantages, can improve the fan high-quality output, reduce the emergence of defective products

• High speed: the image measuring instrument has a fast measuring speed, and can complete the measurement of several parameters of the fan blade in a short time. In the case of mass production of fan blades, it can quickly measure one piece of fan blade after another, which will not cause long waiting time in the production process, greatly improving the measurement efficiency of the production line and ensuring the production rhythm is compact and orderly.

• Precision: Its measurement accuracy is very high, can be accurate to the smallest size unit, for those subtle structural dimensions on the fan blade and the parts that are demanding on precision, can be accurately measured out. In this way, during the production process, the manufacturing of fan blades can be controlled in strict accordance with the design standards, avoiding quality problems such as dimensional deviations caused by measurement errors.

• Stability: the measurement results of the image measuring instrument has a good stability, will not be due to some small fluctuations in the external environment or a long time of continuous work and other factors and large changes in the measurement data. In repeated measurements of the same fan blade or different fan blades, can give reliable and consistent measurement data, thus providing a stable reference for quality control, helping to accurately screen out qualified fan blade products, reducing the flow of defective products to the subsequent process, and ultimately improve the overall high-quality output ratio of the computer fan, to protect the reliability of the computer cooling system.

Measurements:
