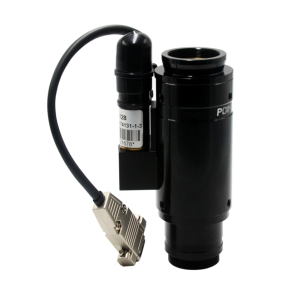

In the highly precise and efficiency-driven field of PCB (printed circuit board) manufacturing, AOI (automated optical inspection) technology has become a critical safeguard for product quality. Like an inspector with “eagle eyes,” it swiftly and accurately identifies various defects on PCBs, ensuring each circuit board meets stringent quality standards. In this battle for precision inspection, POMEAS motorized ZOOM LENS have emerged as the “secret weapon” for boosting inspection efficiency and accuracy. This is due to their unique ability to “first survey the whole picture, then examine the minutiae,” coupled with a series of significant advantages.

I. Holistic Perspective: Rapid Positioning, Laying the Foundation for Efficiency

At the initial stage of PCB AOI inspection, facing a circuit board densely packed with intricate circuits and components, the key to enhancing overall inspection efficiency lies in rapidly and accurately pinpointing the target inspection area. Here, the POMEAS motorized ZOOM LENS demonstrates its exceptional “global vision” capability.

Set to low magnification, the lens swiftly captures reference marks or large-area features on the PCB. These markers function as “navigation lights” on the circuit board, providing precise positioning benchmarks for subsequent precision inspections. At this stage, the POMEAS motorized ZOOM LENS examines the entire circuit board from a macro perspective, rapidly planning the optimal inspection path. Its highly stable mechanical structure and precise motorized control ensure flawless positioning, laying a solid foundation for subsequent detailed inspections.

II. Quick Switching: The devil is in the details.

After completing global positioning, the POMEAS motorized ZOOM LENS demonstrates its remarkable “instant switching” capability. Without moving the circuit board or replacing inspection equipment, the lens swiftly transitions from low to high magnification, enabling precise measurement of minute details such as solder joints and circuit lines.

Throughout this process, the POMEAS motorized ZOOM LENS functions like a “microscopic explorer,” delving into every corner of the circuit board. Its high-quality optical components and advanced coating technology ensure exceptional imaging clarity and color fidelity at high magnifications, making even the tiniest defects impossible to escape its “eagle eye.” Simultaneously, its rapid zoom speed and precise focal length control further enhance inspection efficiency and accuracy.

III. Classic Application: A “Duet” at the Same Workstation

Taking a well-known PCB manufacturer's practical application as an example, POMEAS motorized ZOOM LENS achieve a “dual-function” capability at the same workstation: rapid low-magnification positioning and high-magnification precision measurement. During inspection, the lens first performs a low-magnification scan of the entire circuit board to lock onto mark points and critical inspection areas. Subsequently, without any mechanical adjustments, the lens instantly switches to high magnification for detailed examination of solder joints, circuit traces, and other fine features.

This capability of the POMEAS motorized ZOOM LENS not only drastically reduces inspection time but also significantly enhances detection accuracy. According to feedback from the manufacturer, the introduction of POMEAS motorized ZOOM LENS boosted PCB AOI inspection efficiency by nearly 30% while achieving unprecedented defect detection rates.

IV. Unique Advantages of the POMEAS Motorized Zoom Lens

1. High Precision and Stability: POMEAS motorized ZOOM LENS incorporate advanced mechanical design and motorized control technology, ensuring high precision and stability during zoom operations. This provides robust assurance for the accuracy of inspection results.

2. Rapid Response and Flexible Switching: The lenses feature fast zoom response capabilities, enabling instantaneous switching from low to high magnification. This meets the stringent demands for speed and flexibility in PCB AOI inspection.

3. Superior Imaging and Color Reproduction: High-quality optical elements and advanced coating technology ensure exceptional image clarity and color fidelity at high magnifications, delivering more accurate and reliable inspection results.

4. Easy Integration and User-Friendly Operation: The compact design of the POMEAS motorized ZOOM LENS facilitates seamless integration into existing AOI inspection systems. Its intuitive interface and streamlined workflow reduce operator training costs and ease of use.

5. Robust Compatibility and Scalability: The lens supports multiple communication protocols and interface standards, enabling seamless integration with AOI inspection equipment from various brands. Its modular design philosophy also facilitates future functional expansions and upgrades.

The role of POMEAS motorized ZOOM LENS in PCB AOI inspection extends far beyond enhancing detection efficiency and accuracy. By providing real-time feedback on inspection data, they also offer robust support for optimizing production processes. For instance, by analyzing defect distribution and types within inspection data, manufacturers can promptly identify potential issues in production and implement corresponding improvement measures, thereby achieving closed-loop management from inspection to optimization.
