High-resolution telecentric lenses are specialized lenses designed for precision optical measurement. Their core feature lies in the “parallel optical path” design—ensuring the principal rays remain parallel to the imaging axis at all times, thereby effectively eliminating perspective distortion and image deformation.

Compared to traditional industrial lenses, telecentric lenses maintain exceptionally high edge sharpness across a large field of view and deliver outstanding MTF (Modulation Transfer Function) performance. This characteristic provides significant advantages in micro-feature recognition, scenes requiring large depth of field, and sub-micron precision measurements, enabling accurate capture of the true dimensions and contours of workpieces.

With stable optical performance and outstanding image consistency, high-resolution telecentric lenses have become indispensable key components in precision workpiece visual inspection, providing reliable assurance for high-precision measurement.

Detailed Features of High-Resolution Telephoto Lenses

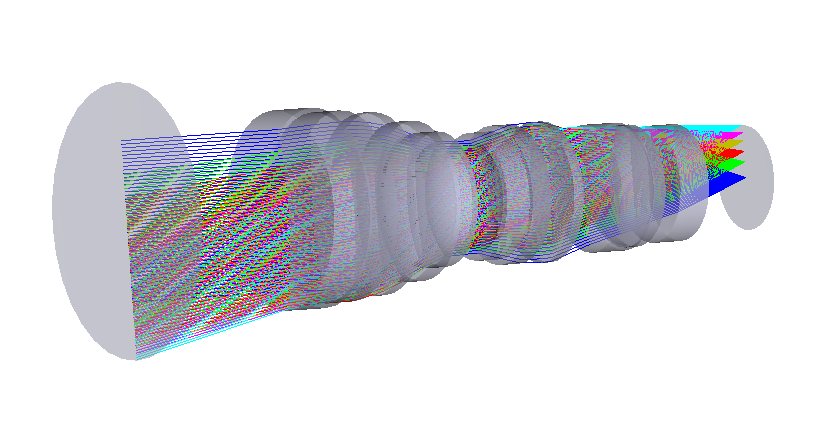

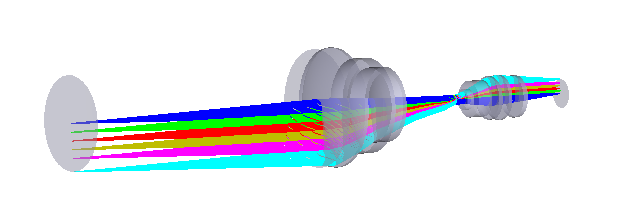

1. Revolutionary Parallel Optical Path Design

The core breakthrough of high-resolution telecentric lenses lies in their innovative “parallel optical path” design. Unlike traditional industrial lenses, its primary light rays remain strictly parallel to the imaging axis. This design fundamentally eliminates perspective distortion at the optical principle level, ensuring the absolute fidelity of the measured object's edge contours in the image.

2. Unparalleled Performance Advantages

Compared to conventional industrial lenses, high-resolution telecentric lenses deliver outstanding edge sharpness while maintaining a large field of view. Their exceptional Modulation Transfer Function (MTF) performance enables clear capture of even micron-level features. This capability demonstrates significant advantages in applications like micro-component measurement and deep-depth-of-field scenarios, paving the way for sub-micron precision measurement.

3. Precision Manufacturing for Reliable Assurance

In practical applications, high-resolution telecentric lenses effectively overcome measurement errors inherent in conventional lenses, delivering reliable data support for critical processes like workpiece dimensional inspection and positional alignment. Their stable imaging performance ensures consistent and repeatable measurement results, establishing them as indispensable “optical rulers” in modern smart factories.

POMEAS high-resolution telecentric lenses combine advanced optical technology with precision manufacturing, setting a new benchmark in industrial measurement. Choosing POMEAS means choosing precision, reliability, and the future.
