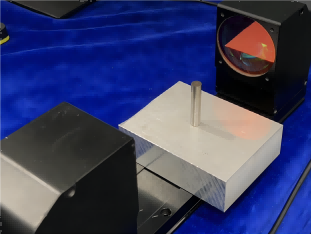

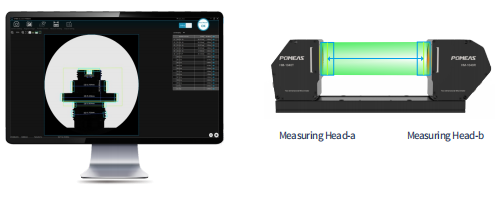

The online projected image measuring instrument, as a measuring device integrating advanced technology, consists of core components such as transmitter, receiver, receiving parallel light, light-receiving element, double telecentric measuring head and green LED parallel light. It demonstrates significant advantages in the field of dimensional measurement, which are explained in detail below:

On-line real-time measurement: On-line projected image measuring instrument enables real-time dimensional measurement, which is crucial for quality control and product inspection on the production line. It provides rapid measurement results to help production staff identify problems and make adjustments in a timely manner, thus ensuring production efficiency and product quality.

High-precision dimensional measurements: The gauge features a 1 micron measurement accuracy, which is critical for application scenarios that require high-precision measurements. Whether it is precision mechanical parts, electronic products or other areas that require strict dimensional control, accurate measurement results can be obtained.

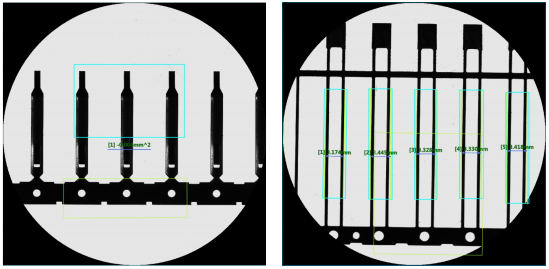

Batch Copy Function: The batch copy function of the on-line projected image measuring instrument is particularly convenient when multiple measuring tools need to be used at the same time. Users can batch copy and arrange the tools in any number, direction and interval, which greatly simplifies the setting process and improves the measurement efficiency.

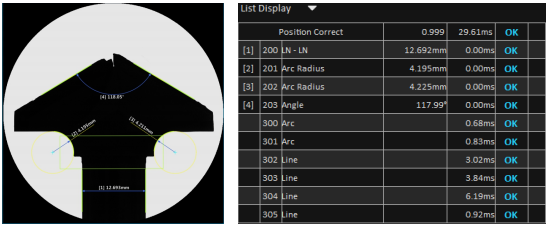

A wealth of measurement tools: In addition to basic dimensional measurements, the gauge supports a wide range of functions such as geometric tolerance measurements, standard contour comparisons, and defect distance measurements. This makes it capable of meeting not only basic measurement needs, but also playing an important role in complex quality control and product inspection.

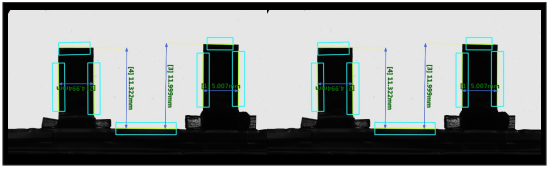

Automatic correction of position offset: During the measurement process, the position of the measurement object may be offset due to various factors. The on-line projection image measuring instrument has the function of automatically correcting the positional offset, which can ensure the accuracy of the measurement results and reduce the errors caused by the positional offset.

Ease of Integration: Whether on the production line or in other inspection equipment, the in-line projected image measuring instrument demonstrates a high degree of integration. Its lightweight design and easy installation make it easy to integrate into existing production or inspection systems, providing users with a convenient measurement solution.

POMEAS in-line projected image measuring instruments offer significant advantages in the field of dimensional measurement, not only improving measurement accuracy and efficiency, but also providing users with a wealth of measurement tools and convenient integration methods. These advantages make it widely used in various application scenarios that require high precision and high efficiency measurement.
