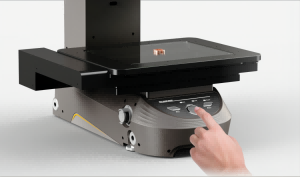

In today's fast-changing measurement technology, high-precision image measuring instrument with its excellent function and innovative design, for industrial measurement field has brought a new change. Although the traditional image size measuring instrument can meet most of the flat size measurement needs, but in the face of height measurement, contour degree and other complex measurement tasks, often out of reach. The emergence of high-precision image measuring instruments has completely broken this limitation.

I. 2D/3D Measurement All-rounder

The biggest highlight of the high-precision image measuring instrument is its powerful 2D/3D measurement capability. Equipped with the advanced spectral measurement module, the instrument can not only easily complete the measurement of flat dimensions, but also display the 3D dimensional information of the product, such as contour, height and so on. This feature makes the high-precision image measuring instrument easy to deal with complex measurement tasks, whether it is the size inspection of precision parts, or the comprehensive measurement of large workpieces, can get accurate and comprehensive data support.

II. Navigation Camera Module: Enhancing Measurement Efficiency

In order to further improve the measurement efficiency, high-precision image measuring instrument is also equipped with a navigation camera module. This module can observe the overall image in real time during the measurement process, helping users quickly confirm the measurement position. At the same time, it can also directly observe the setup position of the target on the platform, thus greatly reducing the preparation time before measurement and making the measurement process smoother and more efficient.

III. High-precision double-magnification dual-side telecentric lens: details at your fingertips

The built-in high precision double-magnification double-side telecentric lens newly developed by POMEAS, with its excellent optical performance and imaging quality, is able to clearly observe the edges of the product that cannot be observed without increasing the magnification. This feature enables the high-precision image measuring instrument to capture more detailed information when performing dimensional measurements, thus ensuring the accuracy and reliability of the measurement results.

With its powerful 2D/3D measurement capability, efficient navigation camera module, and superior high-precision dual-magnification dual-side telecentric lens, the high-precision image measuring instrument brings a new solution to the industrial measurement field. Whether you are facing complex measurement tasks or pursuing efficient measurement processes, the High Precision Image Measuring Instrument delivers outstanding performance.
