As a key component in copying equipment, the flatness, smoothness and diameter of copier rollers have a direct impact on the actual application of the product. In order to ensure the quality and performance of copier rollers, it is especially important to measure their outer diameter accurately.

The size of the outer diameter of the copier roller is directly related to its fit with other parts of the copying equipment, which in turn affects the precision and effect of copying. If the deviation of the outer diameter of the roller is too large, it may lead to blurring of the copy image, discontinuous lines and other problems. Therefore, accurate measurement of the outer diameter of the copying roller is a key link to ensure stable copying quality and enhance product competitiveness.

Solution for measuring the outer diameter of copier rollers: in-line digital calipers

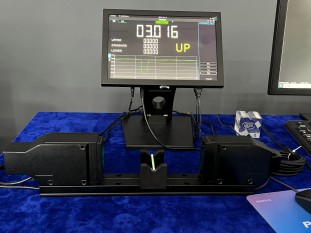

The on-line digital diameter measuring instrument utilizes the non-contact measuring principle, scanning the copying rollers by laser or photoelectric sensors, and collecting the data on the surface of the rollers in real time. By processing and analyzing this data, the instrument can accurately calculate the outer diameter of the roller.

1. Measurement modes: The online digital caliper has a variety of measurement modes to meet the measurement needs of different scenarios. For the measurement of the outer diameter of copying rollers, the instrument can enable two measurement modes at the same time: one is to measure the outer diameter of the roller directly, and the other is to measure the eccentricity of the roller. These two measurement modes complement each other to provide more comprehensive information on the dimensions of the rollers.

2. Measurement Accuracy and Efficiency: The in-line digital caliper has extremely high measurement accuracy and efficiency. Its measurement accuracy can reach the micron level, which can meet the strict requirements for dimensional accuracy of copying rollers. At the same time, the instrument has a rapid response capability, can be completed in a short period of time a large number of roller outside diameter measurement work, greatly improving production efficiency.

3. Data management and analysis: The instrument is equipped with an advanced data management system, which can automatically record, store and analyze the measurement results. Users can access the data remotely via computer or mobile device for further analysis and processing.
