In today's precision manufacturing and quality control fields, image dimension measuring instruments have become indispensable tools with their high accuracy and powerful functions. Among them, edge-grabbing capability, one of the key advantages of image dimension meters, brings great convenience and accuracy to measurement work.

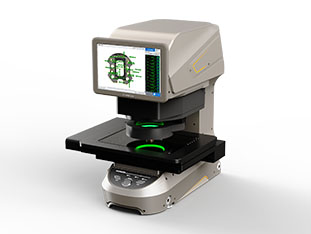

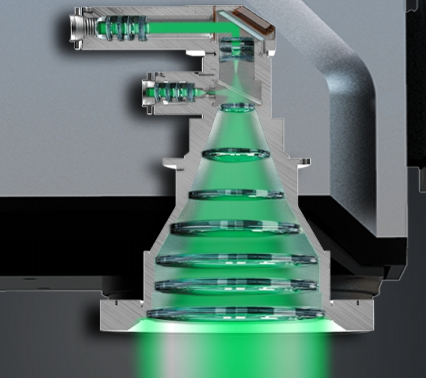

The Image Size Gauge utilizes an advanced dual telecentric lens design, which not only improves the accuracy of the measurement, but also greatly enhances its edge-grabbing ability. The dual telecentric lenses ensure consistent magnification over the entire field of view, thus avoiding measurement errors caused by lens distortion. At the same time, with dual 20 megapixel high-definition industrial cameras, the Image Size Gauge is able to capture more detailed and clearer images, providing a more reliable data base for edge detection.

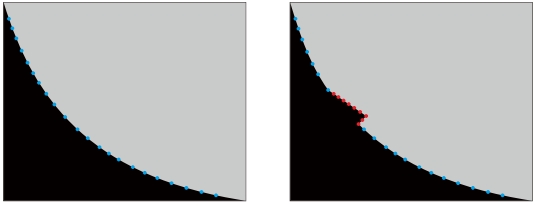

The Image Size Gauge introduces a new algorithm for AI edge detection. This algorithm utilizes the powerful computing power of AI technology to detect edges in images more accurately and stably. Compared with traditional edge detection methods, the AI algorithm is able to cope more effectively with a variety of complex image situations, such as uneven surfaces, burrs or defects at the measurement location, and so on. In practice, when these challenges are encountered, the Image Dimensioner is able to automatically identify and exclude anomalies, ensuring the accuracy and reliability of the measurement results.

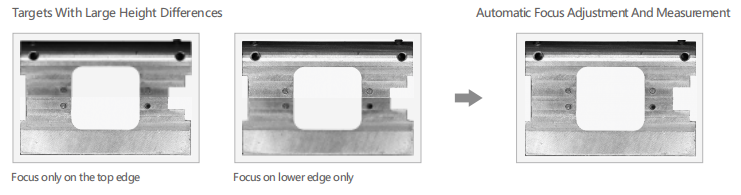

It is worth mentioning that the POMEAS double side telecentric lenses in the Image Size Gauge are also optically characterized by a special design for large depth of field. This design allows the lens to autofocus on targets that cannot be focused on in a single pass due to uneven surfaces. This means that no matter how the surface shape of the target changes, the image sizer can quickly and accurately find the optimal focus position, eliminating operator-dependent focusing errors.

The Image Dimension Gauge has excellent edge-grabbing capabilities, and its advanced dual telecentric lens design, high-definition industrial camera, and new algorithms for AI edge detection combine to form its powerful measurement system. This system is not only able to cope with various complex measurement environments, but also ensures the accuracy and reliability of measurement results.
